LC Duplex OM2 50/125nm red Color LSZH Patch Cord Fiber Cable
Fiber Optic Patchcord Description:

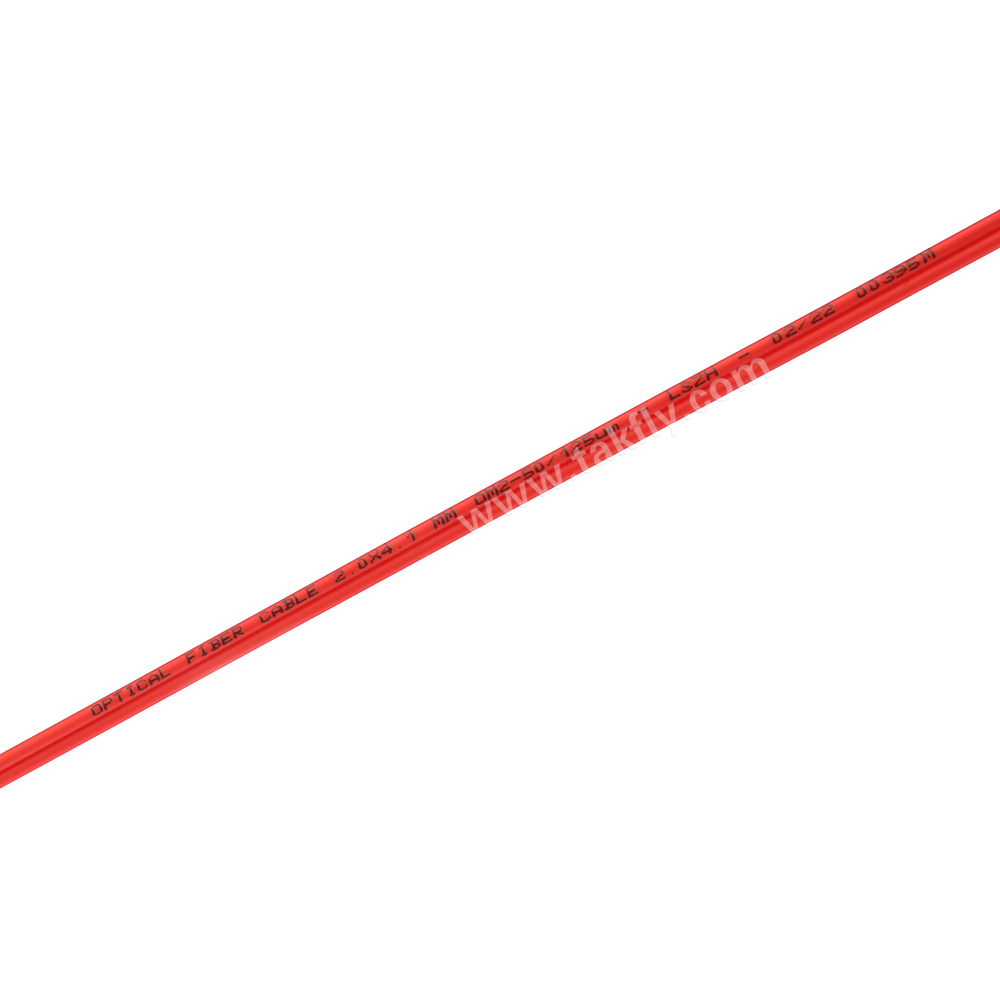

OM2 50/125um fiber cable is orange color regularly. We customized the red color to meet the demands of the market requirements. It is easier to identify the cable from the old cabling patch cords. Regular OM2 is orange in color.
OM2 cable fiber is 50/125um core. The core diameter and numerical aperture are relatively small, which effectively reduces the modal dispersion of multimode fibers, significantly increases the bandwidth, and reduces the production cost.
Fiber Optic Patchcord Applications:
- CATV
- Telecommunication networks
- Active device termination
- Local area networks(LANs)
- Data processing networks
- Test equipment
- Wide area networks(WANs)
Fiber Optic Patchcord Features:
- Low insertion loss and High reflection loss
- Good exchangeability
- Good durability
- High-temperature stability
- Standard: Telcordia GR-326-CORE
Fiber Optic Patchcord Specification:
| End face type | PC, UPC, and APC |
| Fiber type | SM(G652, G655, G657)； MM(OM1-OM5) |
| Cable Diameter | 2.0,3.0 or customized(Simplex/duplex) |
| Insertion loss | ≤ 0.3 dB |
| Return loss | UPC SM≥50dB ,APC SM≥ 60 dB, PC MM ≥ 35 dB |
| Repeatability | ≤ 0.1 |
| Durability | ≤ 0.2dB |
| Interchangeability | ≤ 0.2dB |
| Tensile strength | >70N |
Operating
Temperature | -20℃~70℃ |
| Storage Temperature | -40℃~80℃ |
| Outer Sheath Material | PVC,LSZH,TPU |
Bending radius
(Static/Dynamic | 10D/20D |
| Length | Customized |
Fiber Optic Patchcord types:
How to order Fiber Optic Patchcord
1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirement
8.MPO/MTP connector should let us know which method ( A type / B type /C type ), male or female, fiber count (4/8/12/16/24/32 fiber )
