Indoor Duplex Armored Fiber Optic Cable , Singlemode or Multimode , GJSFJBV , 2.0mm or 3.0mm
Fiber Optic Armored Cable Description:
Armored Fiber Optic Cable is optimized to protect your fiber cable, avoiding any and all unnecessary network downtime as a result of outside interferences. In this modern day and age, the consequences of light attenuation, which could occur throughout your fiber installation, are costly and time-consuming matters. Why not protect your cables from the start?
Armored cabling offers your network an added layer of protection. Fiber Savvy offers armored fiber cables with two different types of armor: standard corrugated steel armored cable and aluminum interlocking armored distribution cable. Standard corrugated steel armored fiber is quintessential in rugged direct burial applications where exceptional durability, moisture, and rodent protection are crucial components. Conversely, our aluminum interlocking armored fiber offers you the same protection, only with greater flexibility when it comes to installation.
Whatever your need is, we have the solution.
Fiber Optic Armored Cable Characteristic:
- Good mechanical and environmental characteristics;
- Flame retardant characteristics meets the requirements of relevant standards;
- The mechanical characteristics meet the requirements of relevant standards;
- Soft, flexible, easy to splice, and with big capacity data transmission;
- Meet various requirements of market and clients.
Fiber Optic Armored Cable Application:
- Optical fiber active connection jumper or tail fiber;
- Optical connections in optical communication equipment rooms and optical distribution frames;
- Interconnection of instruments and communication equipment.
Fiber Charateristic:
| Optical fiber type | Test wavelength | Decay | Full injection bandwidth (MHZ.km) | Effective modal bandwidth (MHZ.km) | Minimum bending radius (mm) |
| Typical (dB/km) | Maximum (dB/km) |
| G652D | 1310/1550nm | 0.36/0.22 | 0.5/0.4 | ... | ... | 16 |
| G657A1 | 0.36/0.22 | 0.5/0.4 | ... | ... | 10 |
| G657A2 | 0.36/0.22 | 0.5/0.4 | ... | ... | 7.5 |
| 62.5/125 | 850/1300nm | 3.0/1.0 | 3.5/1.5 | ≥200/500 | ... | 30 |
| 50/125 | 3.0/1.0 | 3.5/1.5 | ≥500/500 | ... | 30 |
| OM3 | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | ≥2000/... | 7.5 |
| OM4 | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | ≥4700/... | 7.5 |
| OM5 | 850/953nm/1300nm | 3.0/.../1.0 | 3.5/.../1.5 | ≥3500/1850/500 | ≥4700/2470/... | 7.5 |

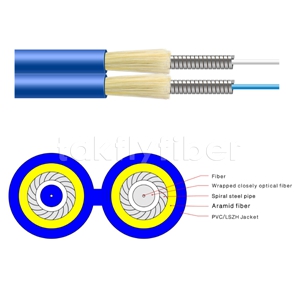

Fiber Optic Armored Cable Product Structure:
| Fiber count | 2 |
| Optical fiber | Diameter(±1µm) | 125µm |
| Coating diameter(±5µm) | 250µm |
| Tight buffer | Diameter(±50µm) | 600µm | 900µm |
| Sheath materiall | PVC/LSZH |
| Color | 1. White 2. Blue or other colors available upon request |
| Metal tube | Diameter(±0.05mm) | 1.2mm | 1.4mm |
| Material | Stainless steel |
| Strength member | Core reinforce | Aramid yarn |
| Outer sheath | Sheath material | PVC/LSZH |
| Color | Blue for single mode cable, Grey for multi mode cable; Or others color available upon request |
| Cable | Outside diameter(mm) | 2.0*4.1 | 2.8*5.7 |
| Cable weight (kg/km) | 21 | 35 |
| Max tensile force(N) | Long-term/s hort-term | 160/300 | 160/300 |
| Crush resistance(N/100mm) | Short-term | 3000 | 3000 |
| Min bend radius(D) | Dynamic/ static | 20/10 | 20/10 |
| Running temperature | -20 ℃ ~+70 ℃ |
For your information, established in 2000, with more than 400 workers, Takfly has 21 years manfufacturing experience in fiber optic products, mainly focus on : MPO/MTP Patch cord, Fiber Optic Patchcord, pigtail, adapter, attenuator, PLC Splitter, WDM/CWDM/DWDM, Termination Box, Fast Connector, Media Converter, POE Switch, SFP Transceiver and High Power products, ect.
1. We've certified with ISO9001, ISO14001, CE, ROHS, REACH, FCC, CPR and Anatel.
2. Main customer: Telefonica, Orange, Movistar, Vodafone, Singtel, Starhub, Corning, Amphenol, SENKO, ect.
3. Availability of R & D with more than 26 engineers, OEM, ODM customer designs are also welcomed .
4. High quality, attractive price and fast delivery
With more than 7 years experience in Fiber Optic field, I hope with my professional knowledge could help you to increase your sales.
