Aluminum Stranded Loose Tube Fiber Optic Outdoor Cable GYTA , For Duct and Aerial Application
GYTA Fiber Optic Outdoor Cable Description:
The aluminum tape armored cables GYTA are suitable for installation for long haul communication and LANs, especially suitable for the situation of high requirements of moisture resistance.
GYTA is the stranded loose tube fiber optic cable with compact structure; the cable jacket is made of strong Polyethylene. This fiber optic cable features the good mechanical and temperature performance.
GYTA is with high strength loose tube that is hydrolysis resistant and the optical cable filling materials ensure high reliability, its APL makes the cable crush resistant and moisture proof.The GYTA is available from 2 cores to 144 cores.
S
GYTA Outdoor Fiber Optic Cable Characteristic
- Good mechanical and temperature performance
- High strength loose tube that is hydrolysis resistant
- Special tube filling compound ensure a critical protection of fiber
- Specially designed compact structure is good at preventing loose tubes from shrinking
- PE sheath protects cable from ultraviolet radiation
- The following measures are taken to ensure the cable watertight:
- Steel wire used as the central strength member
- Loose tube filling compound
- 100% cable core filling
- PSP enhancing moisture-proof
GYTS Outdoor Fiber Optic Cable Application:
- Adopted to outdoor distribution
- Suitable for aerial, pipeline laying method
- Long distance and local area network communication
Fiber Charateristic:
| | G.652.D | G.655 | 50/125μm | 62.5/125μm |
| Attenuation | @850nm | | | ≤3.5 dB/km | ≤3.5 dB/km |
| @1300nm | | | ≤1.5 dB/km | ≤1.5 dB/km |
| @1310nm | ≤0.36 dB/km | ≤0.40 dB/km | | |
| @1550nm | ≤0.22 dB/km | ≤0.23dB/km | | |
| Bandwidth | @850nm | | | ≥500 MHz·km | ≥200 MHz·km |
| @1300nm | | | ≥1000 MHz·km | ≥600 MHz·km |
| Numerical Aperture | | | 0.200±0.015NA | 0.275±0.015NA |
| Cable Cut-off Wavelengthλcc | ≤1260nm | ≤1480nm | | |
GYTA Outdoor Fiber Optic Cable Technical Data:
| Item | Contents | Value |
| Loose tube | material | PBT/PP |
| diameter | Ф2.0mm |
| Central strength member | material | Steel wire/Steel wire with PE cover |
| diameter | Ф1.4~2.0mm |
| Outer sheath | material | MDPE/HDPE |
| Thickness | 1.7mm |
GYTA Outdoor Fiber Optic Cable Mechanical characteristic:
| Cable type | Diameter (mm) | Weight (Kg/km) | Max.Tension (N) | Crush Resistance (N/100mm) | Min. Bending Radius (mm) | Storage temperature (℃) |
| Long/Short Term | Long/Short Term | Dynamic | Static |
| GYTA-2~60 | 10.0 | 110 | 600/1500 | 300/1000 | 20D | 10D | -20~+70 |
| GYTA-62~72 | 10.5 | 120 | 1000/3000 |
| GYTA-74~96 | 12.0 | 145 |
| GYTA-98~120 | 14.0 | 160 |
| GYTA-122~144 | 16.0 | 215 |

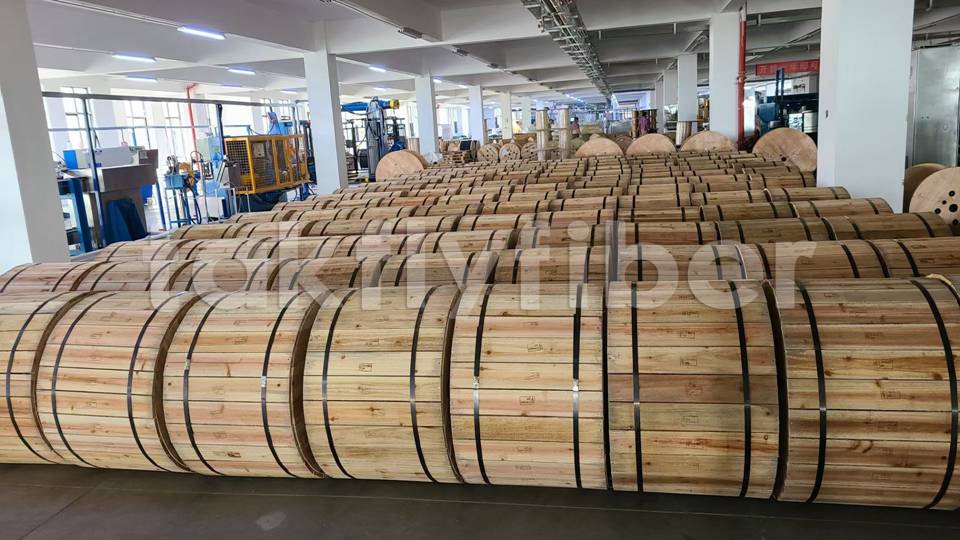

For your information, established in 2000, with more than 400 workers, Takfly has 21 years manfufacturing experience in fiber optic products, mainly focus on : MPO/MTP Patch cord, Fiber Optic Patchcord, pigtail, adapter, attenuator, PLC Splitter, WDM/CWDM/DWDM, Termination Box, Fast Connector, Media Converter, POE Switch, SFP Transceiver and High Power products, ect.
1. We've certified with ISO9001, ISO14001, CE, ROHS, REACH, FCC, CPR and Anatel.
2. Main customer: Telefonica, Orange, Movistar, Vodafone, Singtel, Starhub, Corning, Amphenol, SENKO, ect.
3. Availability of R & D with more than 26 engineers, OEM, ODM customer designs are also welcomed .
4. High quality, attractive price and fast delivery
With more than 7 years experience in Fiber Optic field, I hope with my professional knowledge could help you to increase your sales.
