12F 48F 96F 144F GYTC8A Figure 8 Outdoor Aerial Fiber Optic Cable , SM G652D, HDPE Jacket
GYTC8A Figure 8 Outdoor Aerial Fiber Optic Cable Description:

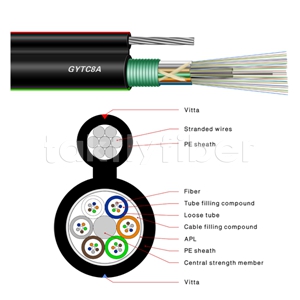

The fibers are placed in a loose tube made of high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire locates in the center of core as a metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular cable core. After Aluminum Polyethylene Laminate (APL) is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene (PE) sheath to be figure 8 structure. This kind of cable is specifically applied for self-supporting aerial installation.
S
GYTC8A Figure 8 Outdoor Aerial Fiber Optic Cable Characteristic
- Good mechanical and temperature performance
- High strength loose tube that is hydrolysis resistant
- High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cost
- Special tube filling compound ensure a critical protection of fiber
- The following measures are taken to ensure the cable watertight:
- Steel wire used as the central strength member
- 100% cable core filling
- APL enhancing moisture-proof
- Water-blocking material
GYTC8A Figure 8 Outdoor Aerial Fiber Optic Cable Application:
- Adopted to outdoor distribution;
- Suitable for aerial
- Long distance and local area network communication.
Fiber Charateristic:
| | G.652.D | G.655 | 50/125μm | 62.5/125μm |
| Attenuation | @850nm | | | ≤3.5 dB/km | ≤3.5 dB/km |
| @1300nm | | | ≤1.5 dB/km | ≤1.5 dB/km |
| @1310nm | ≤0.36 dB/km | ≤0.40 dB/km | | |
| @1550nm | ≤0.22 dB/km | ≤0.23dB/km | | |
| Bandwidth | @850nm | | | ≥500 MHz·km | ≥200 MHz·km |
| @1300nm | | | ≥1000 MHz·km | ≥600 MHz·km |
| Numerical Aperture | | | 0.200±0.015NA | 0.275±0.015NA |
| Cable Cut-off Wavelengthλcc | ≤1260nm | ≤1480nm | | |
GYTC8A Figure 8 Outdoor Aerial Fiber Optic Cable Technical Data:
| Item | Contents | Value |
| Loose tube | material | PBT |
| diameter | Ф1.6-2.2mm |
| strength member | material | Steel Wire+Steel strand |
| diameter | Ф1.4-2.0mm+Ф1.0mm*7 Steel strand |
| Outer sheath | material | MDPE/HDPE |
| Thickness | 1.6mm |
GYTC8A Figure 8 Outdoor Aerial Fiber Optic Cable Mechanical characteristic:
| Cable type | Diameter (mm) | Weight (Kg/km) | Max.Tension (N) | Crush Resistance (N/100mm) | Min. Bending Radius (mm) | Storage temperature (℃) |
| Long/Short Term | Long/Short Term | Dynamic | Static |
| GYTC8A-2-36 | 8.6*15 | 170 | 2000/6000 | 300/1000 | 20D | 10D | -20~+70 |
| GYTC8A-38~72 | 10.5*16.9 | 190 |
| GYTC8A-74~96 | 12*19 | 250 |
| GYTC8A-98~144 | 15*22 | 315 |
