12 to 144 Cores GYTA53 Outdoor Fiber Optic Cable , SM G652D, For Duct and Direct buried
GYTA53 Outdoor Fiber Optic Cable Description:
GYTA53 Outdoor Fiber Optic Cable is widely used in Aerial, Duct, Direct buried Outdoor Application, because it's double armored structure.
GYTA53 uses metal strength member as central strength member to provide excellent strain performance of the cable. Double jacket structure provide the cable nice properties of moisture resistance and crush resistance.
Double armored structure provides cable good property of rodent-resistance. A layer of water-blocking material is appliedaroundthe cable core to prevent water ingress. It can be used for duct and direct buried application.
S
GYTA53 Outdoor Fiber Optic Cable Characteristic
- Good mechanical and temperature performance
- High strength loose tube that is hydrolysis resistant
- Special tube filling compound ensure a critical protection of fiber
- Crush resistance and flexibility
- The following measures are taken to ensure the cable watertight:
- Steel wire used as the central strength member
- Loose tube filling compound
- 100% cable core filling
- APL moisture barrier
- PSP enhancing moisture-proof
- Water-blocking material
GYTA53 Outdoor Fiber Optic Cable Application:
- Adopted to outdoor distribution;
- Suitable for aerial, duct and direct buried;
- Long distance and local area network communication.
Fiber Charateristic:
| | G.652.D | G.655 | 50/125μm | 62.5/125μm |
| Attenuation | @850nm | | | ≤3.5 dB/km | ≤3.5 dB/km |
| @1300nm | | | ≤1.5 dB/km | ≤1.5 dB/km |
| @1310nm | ≤0.36 dB/km | ≤0.40 dB/km | | |
| @1550nm | ≤0.22 dB/km | ≤0.23dB/km | | |
| Bandwidth | @850nm | | | ≥500 MHz·km | ≥200 MHz·km |
| @1300nm | | | ≥1000 MHz·km | ≥600 MHz·km |
| Numerical Aperture | | | 0.200±0.015NA | 0.275±0.015NA |
| Cable Cut-off Wavelengthλcc | ≤1260nm | ≤1480nm | | |
GYTA53 Outdoor Fiber Optic Cable Technical Data:
| Item | Contents | Value |
| Loose tube | material | PBT/PP |
| diameter | Ф2.0mm |
| Central strength member | material | Steel wire/Steel wire with PE cover |
| diameter | Ф1.4~2.0mm |
| Inner sheath | material | MDPE/HDPE |
| Thickness | 1.0mm |
| Outer sheath | material | MDPE/HDPE |
| Thickness | 1.7mm |
GYTA53 Outdoor Fiber Optic Cable Mechanical characteristic:
| Cable type | Diameter (mm) | Weight (Kg/km) | Max.Tension (N) | Crush Resistance (N/100mm) | Min. Bending Radius (mm) | Storage temperature (℃) |
| Long/Short Term | Long/Short Term | Dynamic | Static |
| GYTA53-2~60 | 12.5 | 160 | 600/1500 | 1000/3000 | 20D | 10D | -20~+70 |
| GYTA53-62~72 | 14.5 | 210 | 1000/3000 |
| GYTA53-74~96 | 15.7 | 245 |
| GYTA53-122~144 | 18.5 | 320 |
For your information, established in 2000, with more than 400 workers, Takfly has 21 years manfufacturing experience in fiber optic products, mainly focus on : MPO/MTP Patch cord, Fiber Optic Patchcord, pigtail, adapter, attenuator, PLC Splitter, WDM/CWDM/DWDM, Termination Box, Fast Connector, Media Converter, POE Switch, SFP Transceiver and High Power products, ect.
1. We've certified with ISO9001, ISO14001, CE, ROHS, REACH, FCC, CPR and Anatel.
2. Main customer: Telefonica, Orange, Movistar, Vodafone, Singtel, Starhub, Corning, Amphenol, SENKO, ect.
3. Availability of R & D with more than 26 engineers, OEM, ODM customer designs are also welcomed .
4. High quality, attractive price and fast delivery
With more than 7 years experience in Fiber Optic field, I hope with my professional knowledge could help you to increase your sales.
Product Tags:
|
|

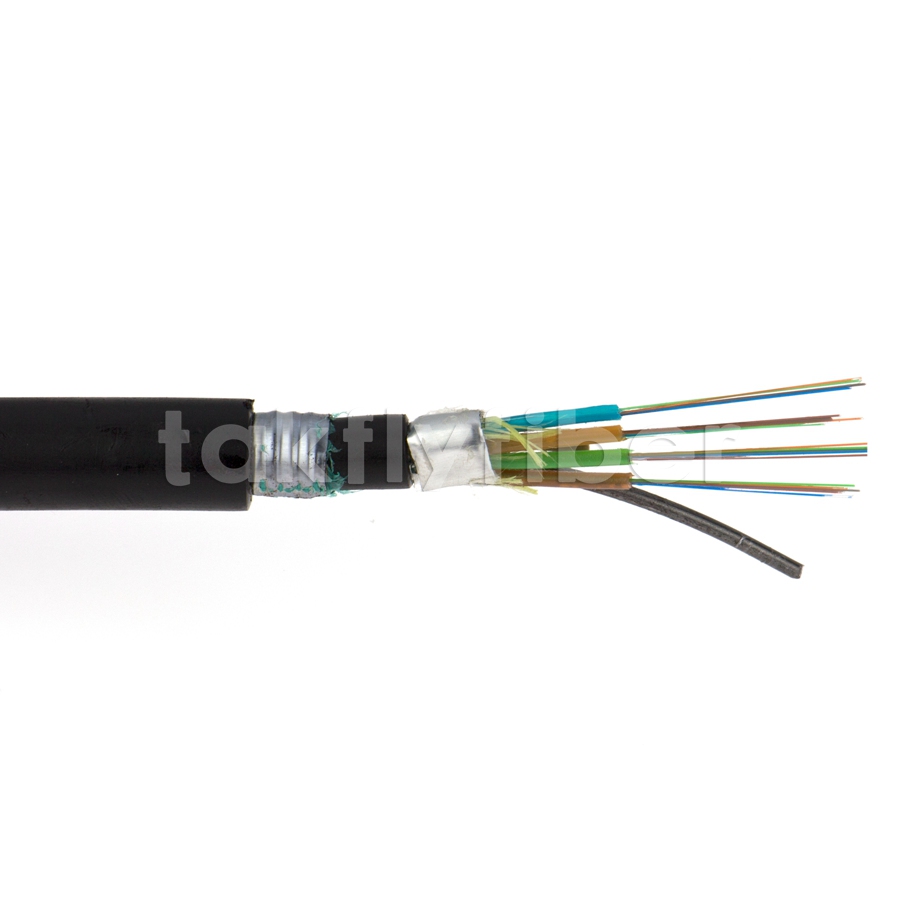

GYTA53 Outdoor Fiber Optic Cable SM G652D For Duct And Direct Buried Images
|
