Brand Name : Takfly/OEM
Model Number : SC SC
Certification : CE, ISO, RoHS, CPR, FCC
Place of Origin : Shenzhen, China
MOQ : 1 pcs
Price : Can be negotiated
Payment Terms : L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability : 100000 pcs/ Month
Delivery Time : 3-15 working days
Packaging Details : PP bag+ Carton box
Connector Type : LC UPC
Fiber Count : Duplex fiber
Cable Diameter : 2.0mm
Mode type : G657A1
Cable color : PINK
Outer Sheath Material : LSZH
LC-LC G657A1 9/125um Singlemode Pink Color Fiber Optic Patch Cord
Fiber Optic Patchcord Description:
Singlemode G657A1 9/125um fiber cable normally is yellow color cable. The single-mode cable can be G652D, G657A1, G657A2, G657B3, and G655. The bending radius of the G652D cable is biggest and decreasing in turn. So, the price of the G655 is the most expensive one.
The single-mode cable color can be any color as your request. We have single-mode Aqua color, green color, pink color, red color, etc in stock. We will produce the single-mode patch cord in yellow color if you do not have a request. You should let us know the cable color if you need other colors for single-mode cable.
Fiber Optic Patchcord Applications:
Fiber Optic Patchcord Features:
Fiber Optic Patchcord Specification:
End face type | PC,UPC and APC |
Fiber type | SM(G652,G655,G657);MM(OM1-OM5) |
Cable Diameter | 2.0,3.0 or customized(Simplex/duplex) |
Insertion loss | ≤ 0.3 dB |
Return loss | UPC SM≥50dB ,APC SM≥ 60 dB, PC MM ≥ 35 dB |
Repeatability | ≤ 0.1 |
Durability | ≤ 0.2dB |
Interchangeability | ≤ 0.2dB |
Tensile strength | >70N |
Operating Temperature | -20℃~70℃ |
Storage Temperature | -40℃~80℃ |
Outer Sheath Material | PVC,LSZH,TPU |
Bending radius (Static/Dynamic | 10D/20D |
Length | Customized |
Fiber Optic Patchcord types:
How to order Fiber Optic Patchcord
1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirement
8.MPO/MTP connector should let us know which method ( A type / B type /C type ), male or female, fiber count (4/8/12/16/24/32 fiber )
![]() |

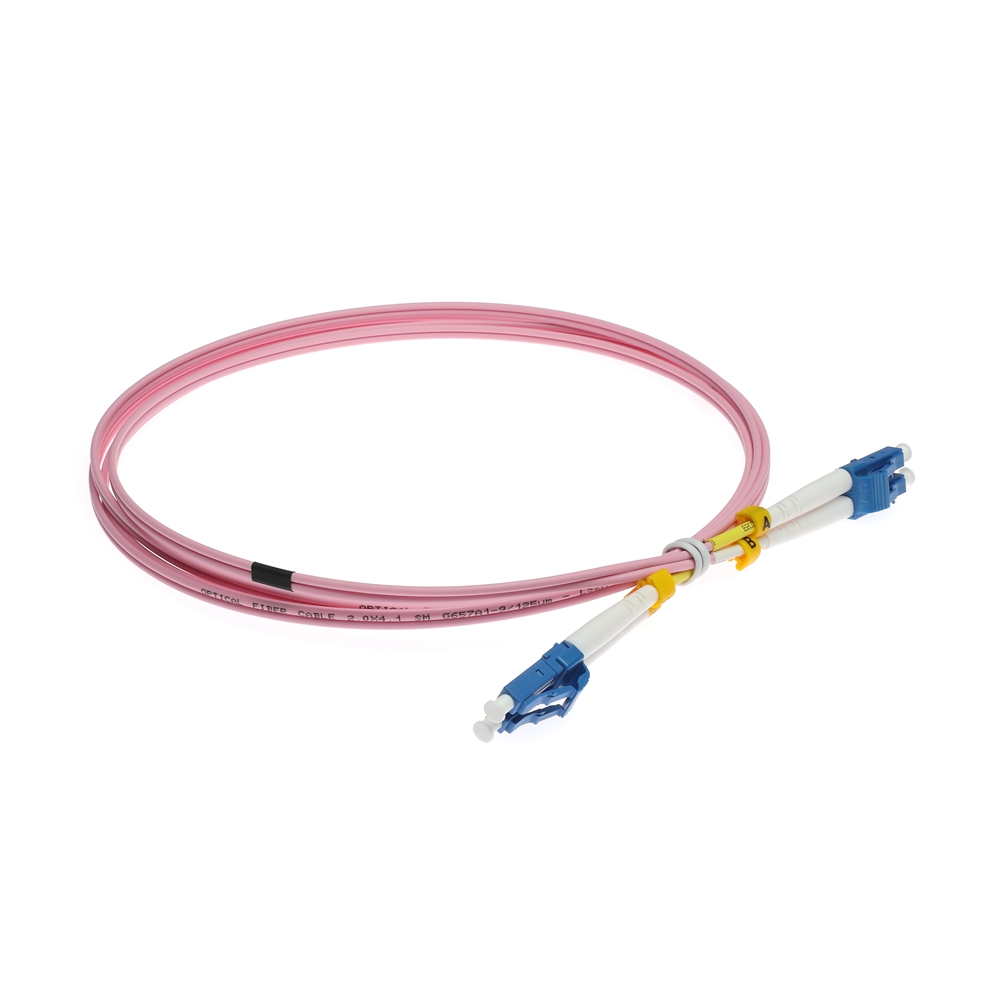

LC-LC G657A1 Singlemode Fiber Optic Patchcord Pink Color 9/125um Images |
