Outdoor Fiber Optic Drop Cable SM G657A Anatel CPR ECA Certified For FTTH

  • 1
  • 2

Brand Name : DF/TAKFLY/OEM

Model Number : GJYX(F)CH

Certification : CPR Eca , ANATEL

Place of Origin : Shenzhen , China

MOQ : 2KM

Price : USD35~45

Payment Terms : T/T, Western Union

Supply Ability : 10000KM per month

Delivery Time : 5-7 working days

Packaging Details : 2KM per drum

Cable DiaFTTH , Outdoor , Aerialmater : 2.0*5.2mm

Fiber count : 1 , 2 , 4 , 6, 8, 12 Cores

Fiber Type : SM G657A1 , G657A2 , G657B3 , G652D

Cable Jacket : LSZH

Jacket Color : White , Black , Grey or Customized

Length per reel : 1KM or 2KM or customized

Central strength member : FRP , KFRP , steel wire

Short Term Tensile Strength : 800N

Contact Now

Anatel and CPR Eca Certified Fiber Optic Outdoor Drop Cable SM G657A for FTTH



Takfly’s FTTH Fiber Optic Outdoor Drop Cables are perfectly suitable for different network access architectures. Whether they are indoor, outdoor, pre-terminated with standard or hardened connectors, Takfly optical drop cables enable fast and optimized fiber optic roll-outs from optical terminal points up to subscriber’s optical outlet.



The Features of Optical Fiber FTTH Drop Cable:

  • Special Low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.
  • Two parallel strength members ensure good performance of crush resistance to protect the fiber.
  • Single steel wire as the traditional strength member ensures god performance of tensile strength.
  • Simple structure,light weight and high practicability.
  • Novel flute design, easily strip and splice, simplify the installation and maintenance.
  • Low smoke, zero halogen and flame retardant sheath.



The application of Optical Fiber FTTH Drop Cable:

  • Adopted to outdoor distribution;
  • Suitable for aerial, pipeline laying method;
  • As FTTH cable,for outdoor horizontal and vertical cabling.



Optical parameters and properties:





Optical fiber type



Test wavelength

 Decay

Full injection bandwidth

(MHZ.km)

Effective modal bandwidth

(MHZ.km)

Minimum bending

radius(mm)

Typical

(dB/km)

Maximum

(dB/km)
G652D



1310/1550nm

 0.36/0.22 0.5/0.4 ... ... 16
G657A1 0.36/0.22 0.5/0.4 ... ... 10
G657A2 0.36/0.22 0.5/0.4 ... ... 7.5
62.5/125





850/1300nm

 3.0/1.0 3.5/1.5 ≥200/500 ... 30
50/125 3.0/1.0 3.5/1.5 ≥500/500 ... 30
OM3 3.0/1.0 3.5/1.5 ≥1500/500 ≥2000/... 7.5
OM4 3.0/1.0 3.5/1.5 ≥3500/500 ≥4700/... 7.5
OM5 850/953nm/1300nm 3.0/.../1.0 3.5/.../1.5 ≥3500/1850/500 ≥4700/2470/... 7.5

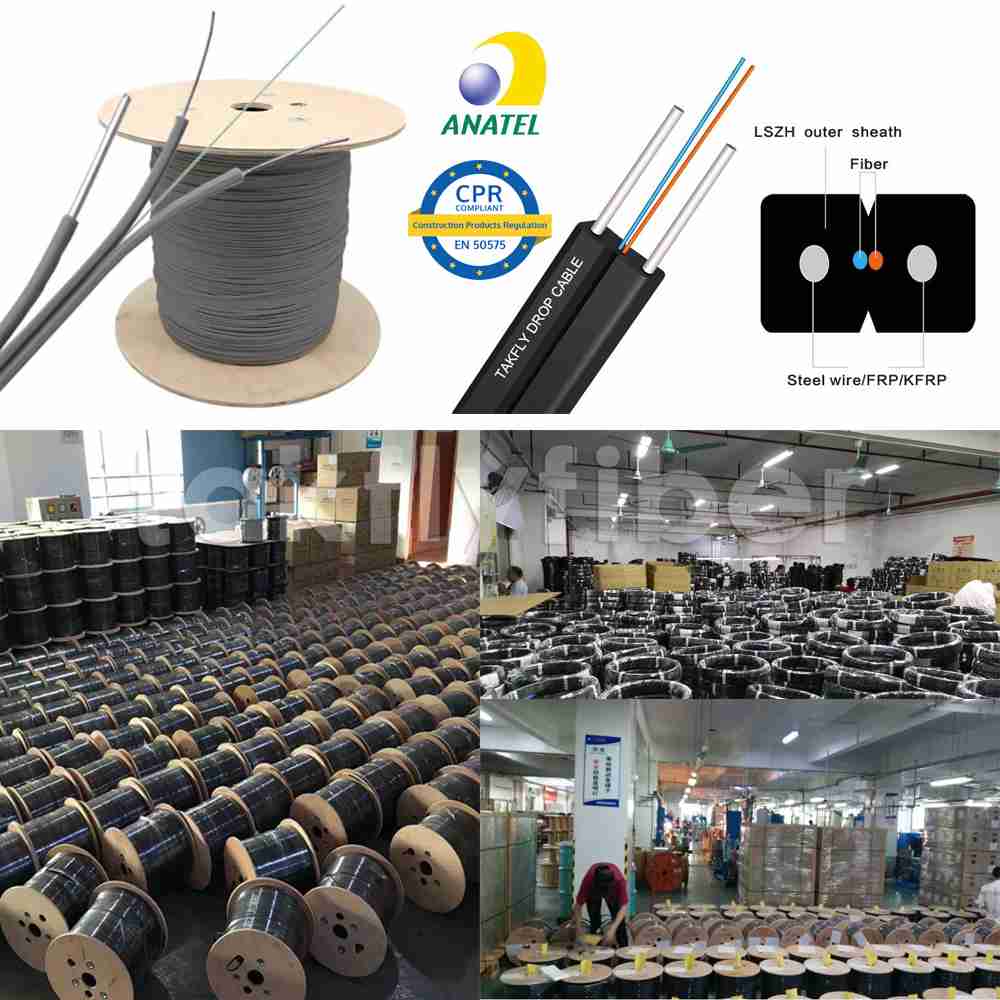

Product structure:



Fiber count GJYXCH-1~4 GJYXFCH-1~4
Optical fiber Diameter(±1µm) 125µm
Coating diameter(±5µm) 250µm



Strength member

 Center reinforcement FRP/KFRP/Steel Wire
Diameter(mm) 0.4mm*2+1.2mm



Outer sheath

 Sheath material LSZH
Thickness(mm) 0.5-0.8mm
Color Black













Cable

 Outside diameter(mm) 2.0*5.2 2.0*5.2
Cable weight (kg/km) 24 21

Max tensile

force(N)

Long-term/

short-term



400/800



400/800

Crush resistance

(N/100mm)



Long-term/ short-term



1000/2200



1000/2200

Min bend

radius(D)

Dynamic/

static



20/10



20/10
Running temperature -20 ℃ ~+70 ℃



Packing: 1KM or 2KM per drum, or customized according to customer's requirement.



Outdoor Fiber Optic Drop Cable SM G657A Anatel CPR ECA Certified For FTTH

About Takfly:

  • Established in 2000, Takfly is a leading manufacturer of fiber optic cable. We've certified with ISO9001, ISO14001, CE, ROHS, REACH, FCC, CPR and Anatel, quality is guaranteed.
  • Main customer: Fibertronics, Nexans, Corning, R&M, Amphenol, SENKO, Telefonica, Orange, Movistar, Vodafone, Singtel, ect.
  • Availability of R & D with more than 26 engineers, OEM, ODM customer designs are also welcomed .
  • High quality, attractive price and fast delivery(2-7days) ;
  • We have 10 fiber optic indoor and outdoor cable production lines, 32 injection machine for adapter/connector and termination box, 10 patchcord production lines, ect.
  • With more than 7years of sales experience and shipping experience in optical fiber products, I have helped more than 127 customers to expand their business and increase sales, and believe we can provide you with professional guidance, help you save time and money, increase your sales.

If you're interested in our fiber optic drop cable or other fiber optic products, please kindly send me email for best price.
