Self Supporting Optical Fiber FTTH Drop Cable Metal Reinforced SM G657A For Aerial

  • 1
  • 2

Brand Name : DF/TAKFLY/OEM

Model Number : GJYX(F)CH

Certification : ISO9001 , ISO14001 , CPR Eca , ANATEL , CE , ROHS

Place of Origin : Shenzhen , China

MOQ : 2KM

Price : USD35~45

Payment Terms : T/T, Western Union

Supply Ability : 10000KM per month

Delivery Time : 5-7 working days

Packaging Details : 2KM per drum

Application : FTTH , Outdoor , Aerial

Fiber count : 1 , 2 , 4 , 6, 8, 12 Cores

Fiber Type : SM G657A1 , G657A2 , G657B3 , G652D

Cable Jacket : LSZH

CaCable Diamater : 2.0*5.2mm

Length per reel : 1KM or 2KM or customized

Central strength member : FRP , KFRP , steel wire

Contact Now

Self-Supporting Optical Fiber FTTH Drop Cable GJYX(F)CH Metal Reinforced SM G657A for Aeriel



FTTH drop fiber optic cable is a very good at fiber optic solution to the last mile of the home. Takfly provides different numbers of FTTH drop cables from 1 core, 2 core, 4 core, 6 core, 8 core, and 12 core, etc.



The structure of the Optical Fiber FTTH Drop Cable is to add a metal suspension wire to the structure of the GJXH optical cable.

The Optical Fiber FTTH Drop Cable has a compact structure and excellent high and low-temperature performance. The reinforced suspension wire adopts high carbon steel wire, which has superior tensile performance.

The optical fiber reinforcement has exceptional bending performance.

The sheath is made of low-smoke and halogen-free materials, which have superior flame-retardant properties.



The Features of Optical Fiber FTTH Drop Cable:

  • 2 parallel steel wire strength member provides good performance of crush resistance
  • Simple structure, light weight and high practicability
  • Single steel wire as an additional strength member for self supporting
  • Unique groove design which is easy to strip and splice
  • Simplify installation and maintenance
  • Low smoke and zero halogen environment friendly sheath material
  • Flame retardant jacket suitable for indoor application



The application of Optical Fiber FTTH Drop Cable:

  • Adopted to outdoor distribution;
  • Suitable for aerial, pipeline laying method;
  • As FTTH cable,for outdoor horizontal and vertical cabling.



Optical parameters and properties:





Optical fiber type



Test wavelength

 Decay

Full injection bandwidth

(MHZ.km)

Effective modal bandwidth

(MHZ.km)

Minimum bending

radius(mm)

Typical

(dB/km)

Maximum

(dB/km)
G652D



1310/1550nm

 0.36/0.22 0.5/0.4 ... ... 16
G657A1 0.36/0.22 0.5/0.4 ... ... 10
G657A2 0.36/0.22 0.5/0.4 ... ... 7.5
62.5/125





850/1300nm

 3.0/1.0 3.5/1.5 ≥200/500 ... 30
50/125 3.0/1.0 3.5/1.5 ≥500/500 ... 30
OM3 3.0/1.0 3.5/1.5 ≥1500/500 ≥2000/... 7.5
OM4 3.0/1.0 3.5/1.5 ≥3500/500 ≥4700/... 7.5
OM5 850/953nm/1300nm 3.0/.../1.0 3.5/.../1.5 ≥3500/1850/500 ≥4700/2470/... 7.5





Product structure:



Fiber count GJYXCH-1~4 GJYXFCH-1~4
Optical fiber Diameter(±1µm) 125µm
Coating diameter(±5µm) 250µm



Strength member

 Center reinforcement FRP/KFRP/Steel Wire
Diameter(mm) 0.4mm*2+1.2mm



Outer sheath

 Sheath material LSZH
Thickness(mm) 0.5-0.8mm
Color Black













Cable

 Outside diameter(mm) 2.0*5.2 2.0*5.2
Cable weight (kg/km) 24 21

Max tensile

force(N)

Long-term/

short-term



400/800



400/800

Crush resistance

(N/100mm)



Long-term/ short-term



1000/2200



1000/2200

Min bend

radius(D)

Dynamic/

static



20/10



20/10
Running temperature -20 ℃ ~+70 ℃



Packing: 1KM or 2KM per drum, or customized according to customer's requirement.

Self Supporting Optical Fiber FTTH Drop Cable Metal Reinforced SM G657A For Aerial

Self Supporting Optical Fiber FTTH Drop Cable Metal Reinforced SM G657A For Aerial

About Takfly:

  • Established in 2000, Takfly is a leading manufacturer of fiber optic cable. We've certified with ISO9001, ISO14001, CE, ROHS, REACH, FCC, CPR and Anatel, quality is guaranteed.
  • Main customer: Fibertronics, Nexans, Corning, R&M, Amphenol, SENKO, Telefonica, Orange, Movistar, Vodafone, Singtel, ect.
  • Availability of R & D with more than 26 engineers, OEM, ODM customer designs are also welcomed .
  • High quality, attractive price and fast delivery(2-7days) ;

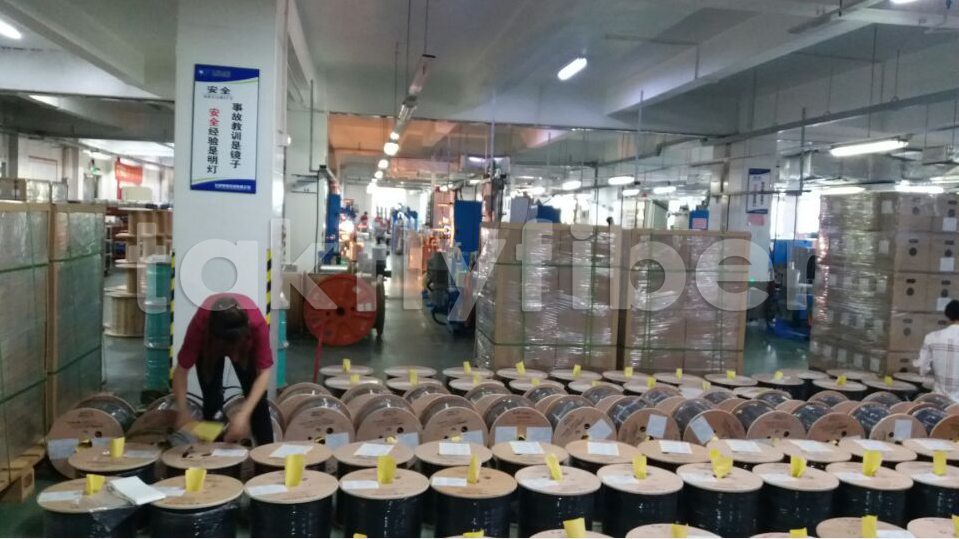

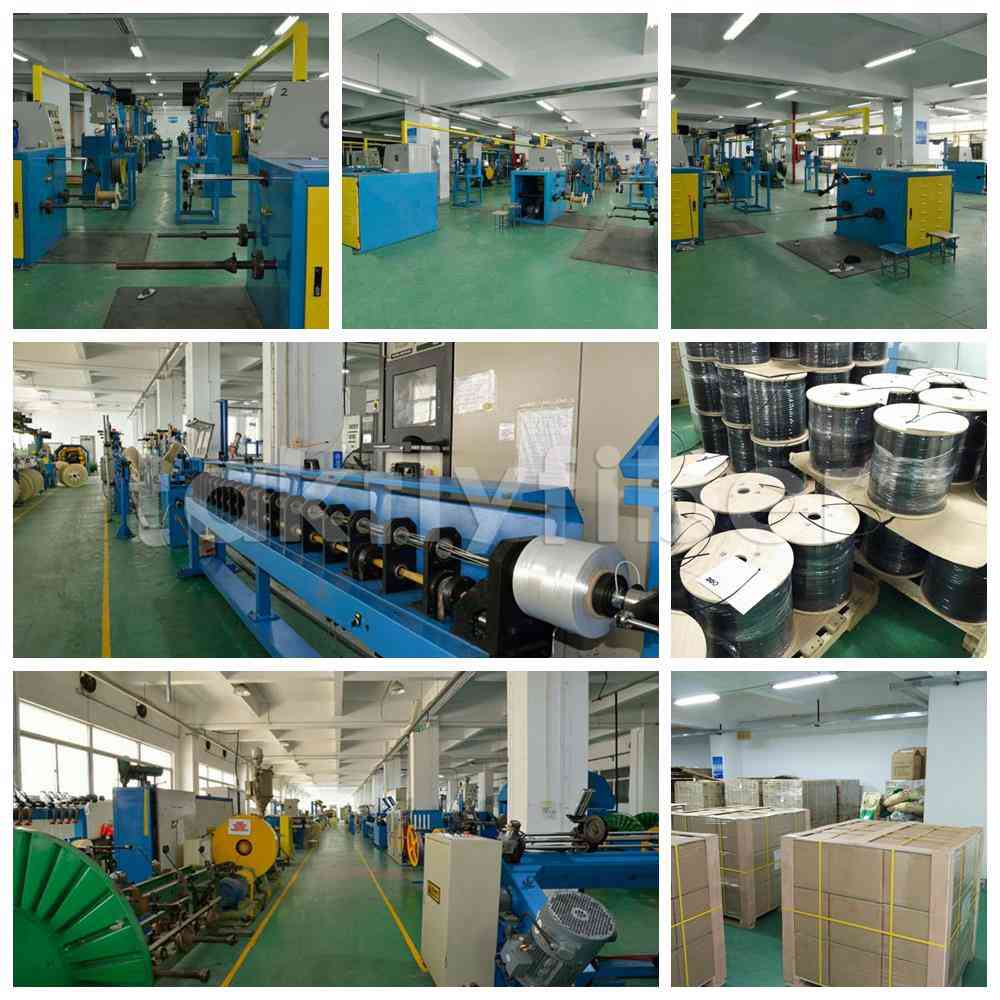

  • We have 10 fiber optic indoor and outdoor cable production lines, 32 injection machine for adapter/connector and termination box, 10 patchcord production lines, ect.
  • With more than 7years of sales experience and shipping experience in optical fiber products, I have helped more than 127 customers to expand their business and increase sales, and believe we can provide you with professional guidance, help you save time and money, increase your sales.

If you're interested in our fiber optic drop cable or other fiber optic products, please kindly send me email for best price.
