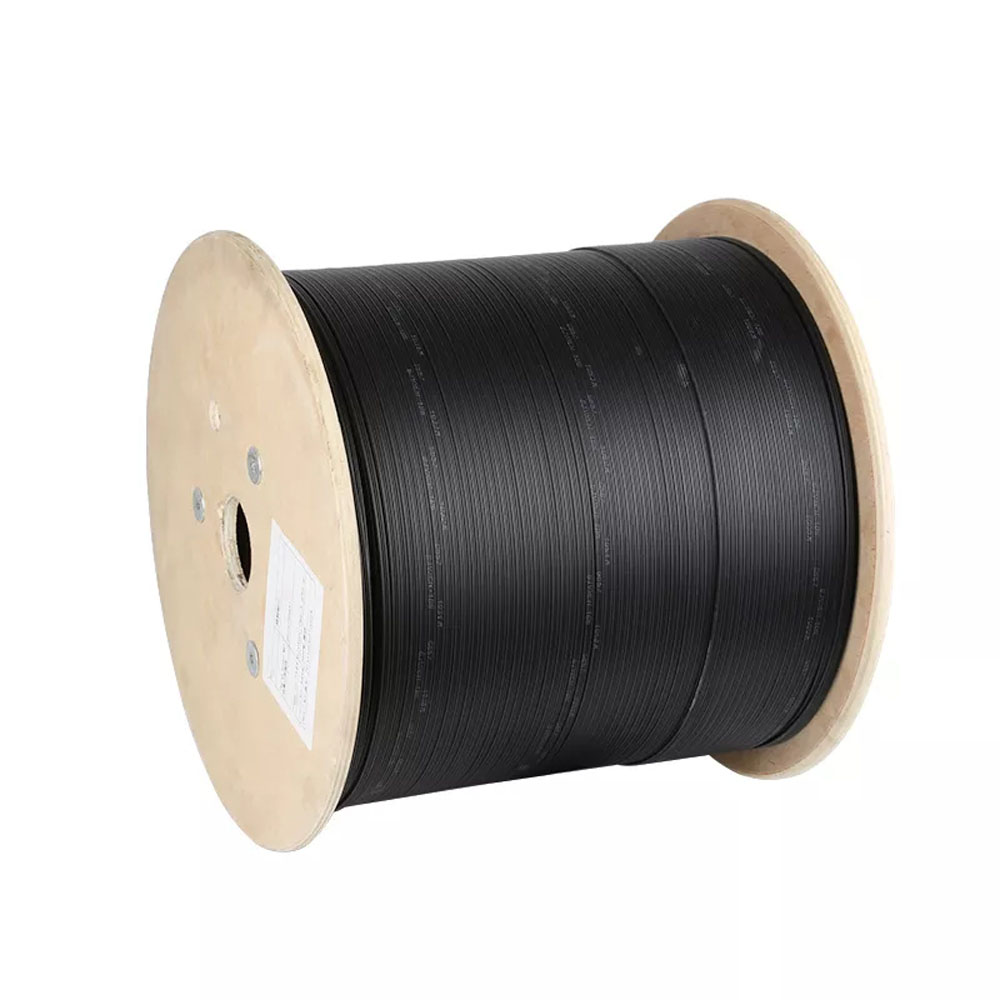

ANATEL Approved 1C 2C 4C G657A Flat FTTH Drop Cable, 1 Core G657A1 GJYXCH Steel Wire FTTH Drop Cable
Description:
FTTH Cable directly connected to their homes, their bandwidth, wavelength and transmission technology type are not restricted. The optical fiber unit id positioned in the centre. Two parallel strength member are placed at the two sides. A steel wire as the additional strength member is also applied ,then, the cable is completed with a black LSZH sheath.
Application:
Adopted to outdoor distribution;
Suitable for aerial, pipeline laying method;
As FTTH cable,for outdoor horizontal and vertical cabling.
Characteristics:
Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;
Simple structure, light weight and high practicability;
Low smoke, zero halogen and flame retardant sheath.
Optical parameters and properties:
| Optical fiber type | Test wavelength | Decay | Full injection bandwidth (MHZ.km) | Effective modal bandwidth (MHZ.km) | Minimum bending radius(mm) |
| Typical (dB/km) | Maximum (dB/km) |
| G652D | 1310/1550nm | 0.36/0.22 | 0.5/0.4 | ... | ... | 16 |
| G657A1 | 10 |
| G657A2 | 7.5 |
| OM1 | 850/1300nm | 3.0/1.0 | 3.5/1.5 | ≥200/500 | ... | 30 |
| OM2 | ≥500/500 | ... | 30 |
| OM3 | ≥1500/500 | ≥2000/... | 7.5 |
| OM4 | ≥3500/500 | ≥4700/... | 7.5 |
| OM5 | 850/953nm/1300nm | 3.0/.../1.0 | 3.5/.../1.5 | ≥3500/1850/500 | ≥4700/2470/... | 7.5 |
Specification:
| Fiber count | GJYXCH-1~4 | GJYXFCH-1~4 |
| Optical fiber | Diameter(±1µm) | 125µm |
| Coating diameter(±5µm) | 250um |
| Messenger | Material | Steel wire |
| Diameter(mm) | 1.0/1.2mm |
| Strength member | Material | Steel wire | FRP/KFRP |
| Diameter(mm) | 0.4~0.5mm |
| Outer sheath | Material | LSZH |
| Thickness(mm) | 0.5~0.8mm |
| Color | Black |
| Cable | Outside diameter(mm) | 2.0*5.2mm |
| Cable weight (kg/km) | 19 | 18 |
| Max tensile Force (N) | Long-term/ Short-ter | 250/500 | 250/500 |
| Crush resistance (N/100mm) | Long-term/ Short-term | 1000/2200 | 1000/2200 |
| Min bend radius(D) | Dynamic/ Static | 20/10 | 20/10 |
| Running temperature | -20 ~ +70 ℃ |
FAQ:
Q: Do you provide OEM service ?
A: Yes, we can print your logo on the cable.
Q: Can you provide free samples ?
A: If we have stock, free sample is available.
Q: How can you guarentee the quality ?
A: Build on our perfect quality management system, all of our products were 100% tested before the shipment.
Q: What is the min
A: Generally 10km.
Q: What's your payment terms ?
A: We accept T/T, Western Union, Paypal, L/C
