OS2 LSZH 24 Cores Fiber Optic Breakout Patch Cable G657A2 SC To SC
24 Core Mini Cable Fiber Optic Breakout Patch Cable cable assemble SC, FC, ST, LC connectors, suitable for ODF, fiber cross cabinet and other communication equipment. It is with high strength aramid yarn ensure high tensile strength and long term stability during transmission.
Indoor Mini Cable Multi cores Patch Cable come with small outer diameter cable, light weight, flame-retardant, soft and easy to install and operate.
The Breakout Patch Cable contains 24 cores and we can assemble various types of connectors upon customer request. Single mode cable color is yellow, multimode cable color is orange/Aqua or OEM color. LSZH or flame-retardant material are also can be chosen.
Fiber Optic Patchcord Applications
- CATV
- Telecommunication networks
- Active device termination
- Local area networks(LANS)
- Data processing networks
- Test equipment
- Wide area networks(WANS)
Fiber Optic Patchcord Features
- Low insertion loss and High reflection loss
- Good exchange ability
- Good durability
- High temperature stability
- Standard:Telcordia GR-326-CORE
Fiber Optic Patchcord Specifications
| End face type | UPC and APC |
| Fiber type | SM(G652 / G655 / G657)；MM(OM1-OM5) |
| Cable Diameter | 3mm(Fiber optic sub unit 250mm) |
| Insertion loss | ≤ 0.3 dB |
| Return loss | UPC SM≥50dB, APC SM≥ 60 dB, PC MM ≥ 35 dB |
| Repeatability | ≤ 0.1 |
| Durability | ≤ 0.2dB |
| Interchangeability | ≤ 0.2dB |
| Tensile strength | 0.9mm cable>5N 2.0/3.0mm cable>70N |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -40℃~80℃ |
| Outer Sheath Material | PVC/LSZH or Customized |
| Bending radius(Static/Dynamic) | 10D/20D |
| Length | Customized |

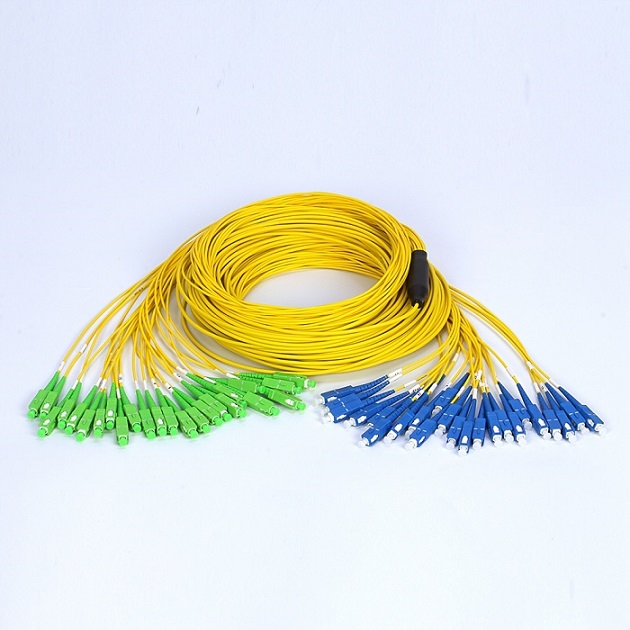

Fiber Optic Patchcord Picture
Why choose TAKFLY--Advantages as follows:
Professional manufacturer:
- With more than 24 years manufacturing experience in Fiber optic products;
- More than 450 assembly workers with 3 years experienced;
- More than 10 R&D Engineers;
- 16 Sets Germany imported Injection Machine and 16 Production Lines;
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, ect.
- OEM Brand is acceptable.
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia ,Global Soure Electronic Exhibition,etc.
Quality Control:
- Spot check the raw material incoming inspection before production;
- Fully check after every individual process finished;
- Fully check production half done;
- Fully check the finished products before packing;
- Spot check before shipping;
Delivery:
- Samples: 1-3 working days.
- Mass Production Order: 3-7 working days.
- Packaging: Plastic Bag, Carton and Pallet are available according to your request.
Price: If your QTY is big, the price could be negotiated.
I have been working in this field more than 10 years, I believe, I could give you very good service and professional answers!
If you’re interested in our products or have any doubt, why not send me inquiry at once?
