LC UPC to LC UPC Fiber Optic Simplex Patch Cable , SM OS2 G657A1 , 2.0mm , 2 M , LSZH Jacket
LC/UPC Fiber Optic Singlemode Simplex Patch Cable could be used in 1G/10G Network connection, it could transport data from 10KM to 120KM.
The fiber optic patchcord used SM G657A1 fiber, it is a bend insensitive fiber, and could install in high density cabling system, such as data center, it could help you to save space.
Fiber patch cords are a type of cables that have two connectors on both ends. Optic patch cords can come in simplex (1 fiber), duplex (2 fibers) or in MPO (12 fibers). The connectors on both sides of the patch cord, allow it to be quickly connected to another device such as an optical switch or other telecommunications/computer device.
Fiber Optic Patchcord Applications
- CATV
- Telecommunication networks
- Active device termination
- Local area networks(LANS)
- Data processing networks
- Test equipment
- Wide area networks(WANS)
Fiber Optic Patchcord Features
- Low insertion loss and High reflection loss
- Good exchange ability
- Good durability
- High temperature stability
- Standard:Telcordia GR-326-CORE
Fiber Optic Patchcord Specifications
| End face type | UPC and APC |
| Fiber type | SM(G652 / G655 / G657)；MM(OM1-OM5) |
| Cable Diameter | 0.9 / 2.0 / 3.0 or customized(Simplex/duplex) |
| Insertion loss | ≤ 0.3 dB |
| Return loss | UPC SM≥50dB, APC SM≥ 60 dB, PC MM ≥ 35 dB |
| Repeatability | ≤ 0.1 |
| Durability | ≤ 0.2dB |
| Interchangeability | ≤ 0.2dB |
| Tensile strength | 0.9mm cable>5N 2.0/3.0mm cable>70N |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -40℃~80℃ |
| Outer Sheath Material | PVC/LSZH or Customized |
| Bending radius(Static/Dynamic) | 10D/20D |
| Length | Customized |

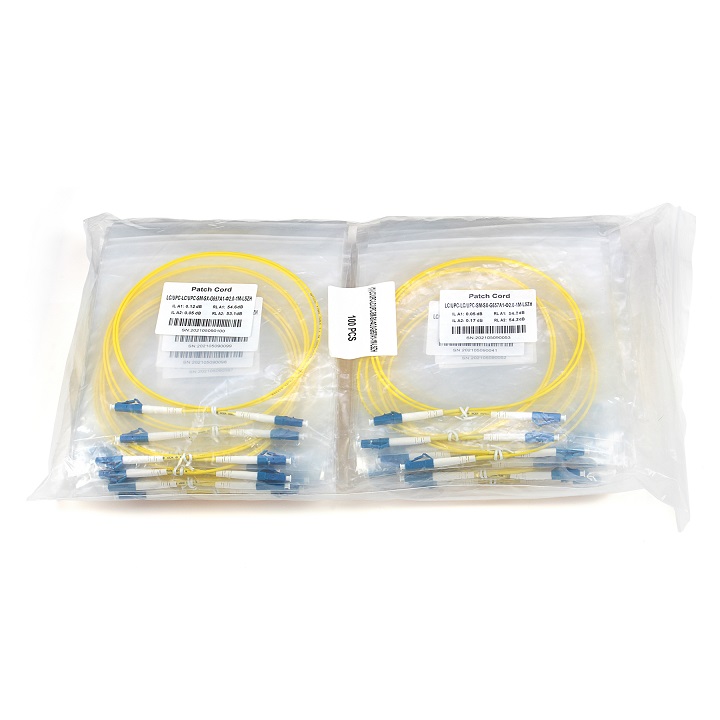

Fiber Optic Patchcord Picture
Why choose TAKFLY--Advantages as follows:
Professional manufacturer:
- With more than 21 years manufacturing experience in Fiber optic products;
- More than 450 assembly workers with 3 years experienced;
- More than 10 R&D Engineers;
- 16 Sets Germany imported Injection Machine and 16 Production Lines;
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, ect.
- OEM Brand is acceptable.
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia ,Global Soure Electronic Exhibition,etc.
Quality Control:
- Spot check the raw material incoming inspection before production;
- Fully check after every individual process finished;
- Fully check production half done;
- Fully check the finished products before packing;
- Spot check before shipping;
Delivery:
- Samples: 1-3 working days.
- Mass Production Order: 3-7 working days.
- Packaging: Plastic Bag, Carton and Pallet are available according to your request.
