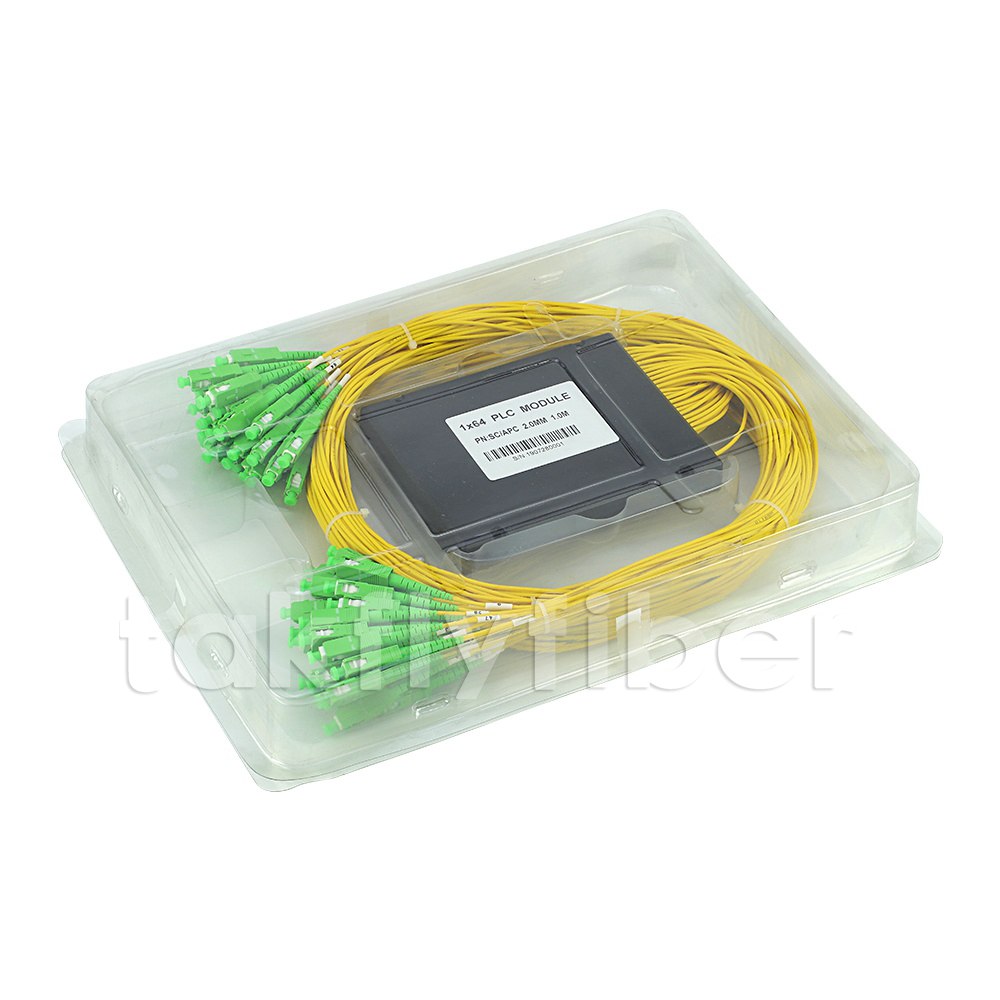

Plastic ABS Box Module 1x64 PLC Fiber Optic Splitter for FTTX PON Network

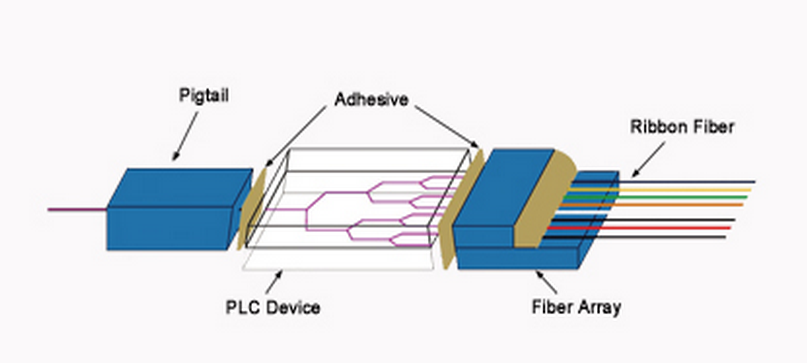

Fiber Optic PLC Splitter Description
PLC Splitters are Single mode splitters with an even split ratio from one input fiber to multiple output fibers. The number of available splitting counts are: 1x2, 1x4, 1x8, 1x16, 1x32, 1x64 and 1x128, ect.
We offer ABS box PLC Splitters with a wide range of styles and sizes to split or combine light with minimal loss. All splitters are manufactured using a very simple process that produces reliable, low-cost devices. Splitters can be fabricated in custom fiber lengths and with any type of connector.
Fiber optic splitters features high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.
.
Fiber Optic PLC Splitter Feature
● Broadband Operation Wavelength
● Low Insertion loss
● Low PDL
● Compact Design
● Good channel-to-channel uniformity
● High Reliability and Stability
Fiber Optic PLC Splitter Applications
● Telecommunication sector
● PON Syster
● FTTH
● CATV
● Video Transmission
Fiber Optic PLC SplitterSpecification
| Item | Parameter |
| Operating Wavelength(nm) | 1260 ~ 1650 |
| Type(1*N) | 1*2 | 1*4 | 1*8 | 1*16 | 1*32 | 1*64 |
| Max.Insertion Loss (dB) | 3.9 | 7.2 | 10.3 | 13.5 | 16.8 | 20.3 |
| Max.Uniformity(dB) | 0.8 | 0.8 | 0.8 | 1.0 | 1.5 | 2.0 |
| Min.Return Loss(dB) | 55 |
| Max.PDL(dB) | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
| Type(2*N) | 2*2 | 2*4 | 2*8 | 2*16 | 2*32 | 2*64 |
| Max.Insertion Loss(dB) | 4.2 | 7.5 | 10.6 | 13.9 | 17.2 | 20.8 |
| Max.Uniformity(dB) | 0.8 | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 |
| Min.Return Loss(dB) | 55 |
| Max.PDL(dB) | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
| Fiber Type | ITU-T G657A1 , G657A2 and G.652D |
| Max.Temperature Stability(dB) | 0.5( Typical 0.3 ) |
| Operating Temperature(℃) | -40 ~ +85 |
| Storage Temperature(℃) | -40 ~ +85 |
All measurement are made at room temperature, and connectors not included
Fiber Optic PLC Splitter Packing Dimension
| Package type | Unit(mm) | 1*2 | 1*4 | 1*8 | 1*16 | 1*32 | 1*64 |
| Basic Packagin Metel box | L×W×H | 40*4*4 | 40*4*4 | 40*4*4 | 50*7*4 | 60*7*4 | 60*12*4 |
| Mini Module Packagin Metel box | 60*7*4 | 60*7*4 | 60*7*4 | 60*12*4 | 80*20*6 | 100*40*6 |
| Module Packagin Plastic box | 100*80*10 | 100*80*10 | 100*80*10 | 120*80*18 | 120*80*18 | 140*115*18 |
| Package type | Unit(mm) | 2*2 | 2*4 | 2*8 | 2*16 | 2*32 | 2*64 |
| Basic Packagin Metel box | L×W×H | 60*7*4 | 60*7*4 | 60*7*4 | 60*7*4 | 80*20*6 | 80*20*6 |
| Mini Module Packagin Metel box | 60*7*4 | 60*7*4 | 60*7*4 | 80*12*4 | 80*20*6 | 100*40*6 |
| Module Packagin Plastic box | 100*80*10 | 100*80*10 | 100*80*10 | 120*80*18 | 120*80*18 | 140*115*18 |
TAKFLY PLC Splitter Services:
- Order inquiry: Keep mobile phone opened 24 hours to gurantee the first reply to clients, 6 years of sales experience in optical fiber products can provide you with professional guidance, help you save cost.
- Order production: Follow up the production schedule closely to ensure timely delivery.
- Before shipment: Our QC would double check the order quantity,package and strength of cartons to avoid lost and damage
- After shipment: Keep tracking shipping status and reporting to clients
- Shipping Method: DHL,UPS,FEDEX,TNT,EMS,SEA,AIR etc.
With 21 years manufacturing experince in Fiber Optic Products, Takfly Group have a wide of PLC Splitters for your option, such as 250μm bare fiber PLC Splitter, 900μm mini steel tube PLC Splitter, ABS Box PLC Splitter, LGX Cassette type PLC Splitter, Rack Mount PLC Splitter, ect.
Takfly PLC Splitters have below advantages:
1. CE, ROHS, ISO9001, ISO14001 certified.
2. High performance, low insertion loss.
3. Branch Numbers from 1x2, 1x4, 1x8, 1x16, ....1x128, and 2x2, 2x4, 2x8, 2x16, 2x32, ......2x128, also with Non-standard 1x3 1x6 1x12 for options.
4. OEM Brand is availble.
If you’re dealing with FTTX, FTTH projects, welcome to inquire us for more details.
