LSZH LC-LC SM/MM 2.0mm Simplex/Duplex Fiber Optic Patch Cord for Safe and Environmentally-Friendly

Product Categories
TAKFLY COMMUNICATIONS CO., LTD.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

LSZH LC-LC SM/MM 2.0mm Simplex/Duplex Fiber Optic Patch Cord for Safe and Environmentally-Friendly

  • 1
  • 2

Brand Name : Takfly/OEM

Model Number : LC-LC

Certification : CE, ISO, RoHS, CPR, FCC

Place of Origin : Shenzhen, China

MOQ : 1 pcs

Price : Can be negotiated

Payment Terms : L/C, T/T, Western Union, MoneyGram, Paypal

Supply Ability : 100000 pcs/ Month

Delivery Time : 3-15 working days

Packaging Details : PP bag+ Carton box

Connector Type : LC-LC

Fiber Tpye : SM (G652、G655、G657); MM (OM1-OM5)

Cable Diameter : 2.0MM

Outer Sheath Material : PVC、LSZH、TPU

OperatingTemperature : -20℃～+70℃

StorageTemperature : -40℃～+80℃

Contact Now


Description:



    Fiber optic patch cord is the cable with both ends terminated with fiber optic connectors, which realizes the connection between optic networking equipment and equipment, and equipment and patch cords. Easy operation and convenience make it indispensable as one of the passive products for optic networking construction.





 Applications:


  • CATV

  • Telecommunication networks

  • Active device termination

  • Local area networks(LANS)

  • Data processing networks

  • Test equipment

  • Wide area networks(WANS)


Features:


  • Low insertion loss and High reflection loss

  • Good exchange ability

  • Good durability

  • High temperature stability

  • Standard:Telcordia GR-326-CORE


LSZH LC-LC SM/MM 2.0mm Simplex/Duplex Fiber Optic Patch Cord for Safe and Environmentally-Friendly

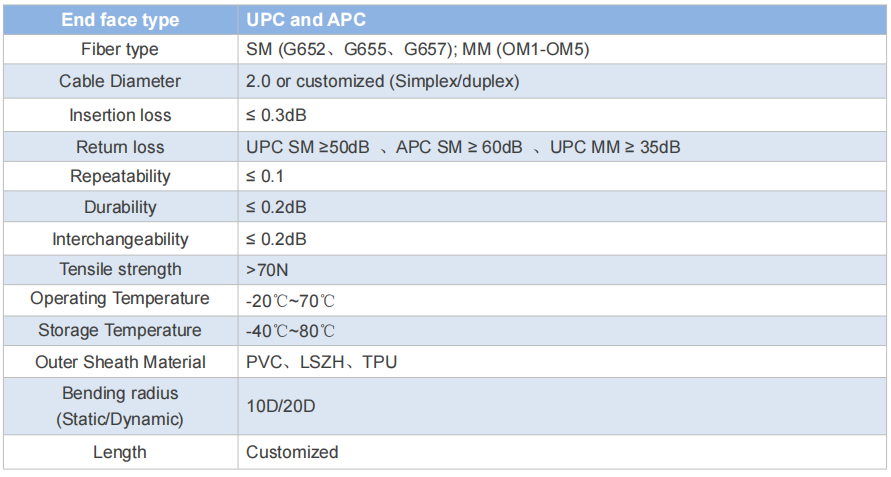

Parameter:

LSZH LC-LC SM/MM 2.0mm Simplex/Duplex Fiber Optic Patch Cord for Safe and Environmentally-Friendly








How to order Fiber Optic Patchcord



1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirement

8.MPO/MTP connector should let us know which method ( A type / B type /C type ), male or female, fiber count (4/8/12/16/24/32 fiber )
