LC/APC-LC/UPC Armoured Fiber Optic Patchcord Multimode and Singlemode Fiber Count


Description:

      LC/APC-LC/UPC armoured patchcord is to add fiber optic connectors at both ends of a armoured fiber optic

cable. Realize the active connection between optical network equipment and equipment, equipment, and fiber

optic patchcord. Simple, convenient, and fast operation, it is one of the indispensable passive products for optical

network construction.

     TAKFLY can provide a full range of armoured patchcords, whose transmission mode,cable type and connector type

can be matched freely. Moreover, they’re featured with advantages of stable transmission, high tensile strength,

crush resistance, rodent resistance and customization etc.and widely applicable in optical network scenario

such as back bone network,optical cabling and data centers etc..

 Applications:


• Datacenter

• BackboneNetwork

• Outdoorscenes

Features:


• ConnectortypeLC,SC,FC,ST,SMAetc.isoptional

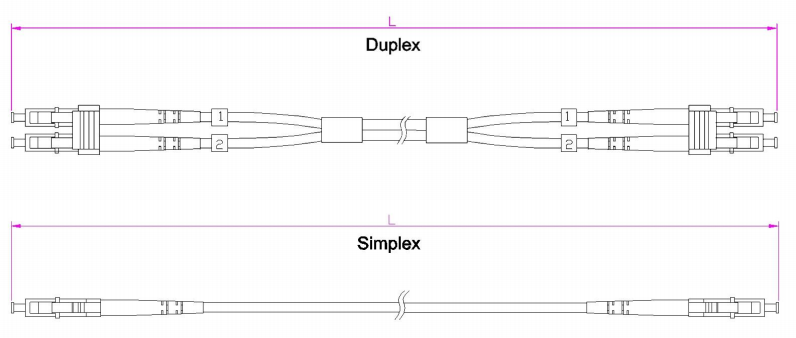

• SinglemodeandMultimode;SimplexorDuplex

• Cable2.0mmor3.0mmwithsimplexorduplexand4,6,8,12,24Core

• Customorderlength

• CableoutJacket:PVC,LSZH,OFNP,OFNRetc.

• AllpartscompliantwithROHS

• IECstandardcompatible

• GR-326-CORECompliant

• Stainlesssteeltubeprovidesgoodprotectionagainstphysicaldamage

• Armouredfiberopticcableprovideshightensilestrength,crushresistanceandrodentresistance


 Armored fiber cable with build-in metal armor can provide stronge rprotection of the optical fibers than standards

fiber optic cables. The rugged armored cables allow optical fiber to be installed inthe most hazardous areas,

including environments with excessive dust, oil, gas, moisture, or even damage-causing rodents.

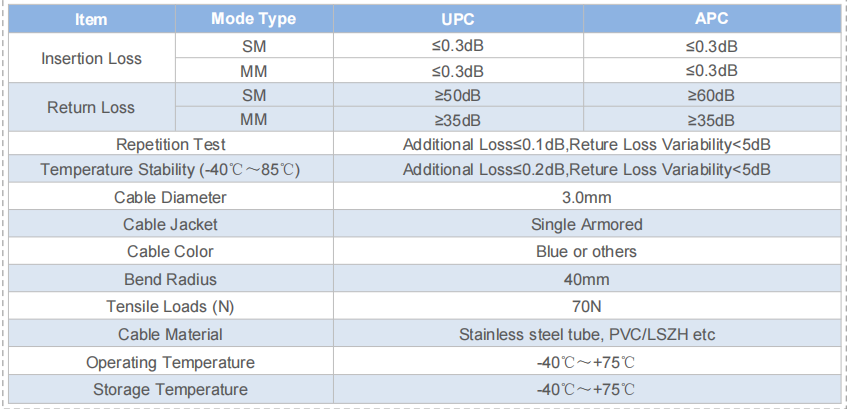

Parameter:

How to order Fiber Optic Patchcord

1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirement

8.MPO/MTP connector should let us know which method ( A type / B type /C type ), male or female, fiber count (4/8/12/16/24/32 fiber )

Singlemode Fiber Optic Patchcord

Armoured Fiber Optic Patchcord

Multimode Fiber Optic Patchcord
