SM/OM1-OM5 Fiber Type LC-ST UPC/ APC Simplex/Duplex Fiber Optic Patch Cord for Networks ≤0.3dB Insertion Loss

Product Categories
TAKFLY COMMUNICATIONS CO., LTD.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

SM/OM1-OM5 Fiber Type LC-ST UPC/ APC Simplex/Duplex Fiber Optic Patch Cord for Networks ≤0.3dB Insertion Loss

  • 1
  • 2

Brand Name : Takfly/OEM

Model Number : LC-ST

Certification : CE, ISO, RoHS, CPR, FCC

Place of Origin : Shenzhen, China

MOQ : 1 pcs

Price : Can be negotiated

Payment Terms : L/C, T/T, Western Union, MoneyGram, Paypal

Supply Ability : 100000 pcs/ Month

Delivery Time : 3-15 working days

Packaging Details : PP bag+ Carton box

Connector Type : LC-ST

Fiber Tpye : SM（G652、G655、G657）；MM（OM1-OM5）

Cable Diameter : 2.0、3.0 or customized（Simplex/duplex）

Outer Sheath Material : PVC、LSZH、TPU

OperatingTemperature : -20℃～+70℃

StorageTemperature : -40℃～+80℃

Insertion loss : ≤0.3dB

Return loss : UPC SM ≥ 50dB 、APC SM≥ 60dB 、 UPC MM ≥ 35dB

Repeatability : ≤ 0.1

Durability : ≤ 0.2dB

Interchangeability : ≤ 0.2dB

Length : Customized

Contact Now





 Applications:


  • CATV

  • Telecommunication networks

  • Active device termination

  • Local area networks(LANS)

  • Data processing networks

  • Test equipment

  • Wide area networks(WANS)


Features:


  • Low insertion loss and High reflection loss

  • Good exchange ability

  • Good durability

  • High temperature stability

  • Standard:Telcordia GR-326-CORE




 SM/OM1-OM5 Fiber Type LC-ST UPC/ APC Simplex/Duplex Fiber Optic Patch Cord for Networks ≤0.3dB Insertion Loss

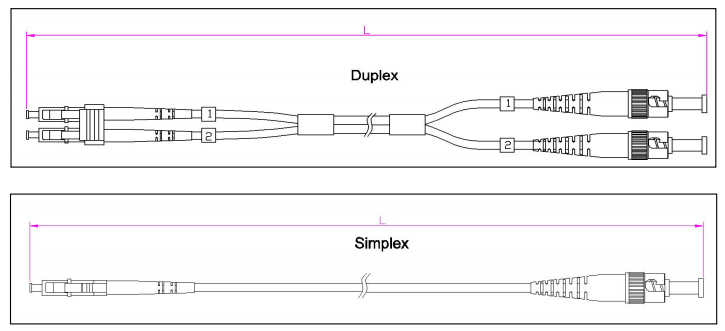

Specifications:



SM/OM1-OM5 Fiber Type LC-ST UPC/ APC Simplex/Duplex Fiber Optic Patch Cord for Networks ≤0.3dB Insertion Loss






How to order Fiber Optic Patchcord



1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirement

8.MPO/MTP connector should let us know which method ( A type / B type /C type ), male or female, fiber count (4/8/12/16/24/32 fiber )
