LC-LC GYFJH 2Core 7.0mm LSZH black Outdoor Protected Branch Cable with Interchangeability ≤ 0.2dB and Durability ≤ 0.2dB

Product Categories
TAKFLY COMMUNICATIONS CO., LTD.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

LC-LC GYFJH 2Core 7.0mm LSZH black Outdoor Protected Branch Cable with Interchangeability ≤ 0.2dB and Durability ≤ 0.2dB

  • 1
  • 2

Brand Name : Takfly/OEM

Model Number : LC-LC

Certification : CE, ISO, RoHS, CPR, FCC

Place of Origin : Shenzhen, China

MOQ : 1 pcs

Price : Can be negotiated

Payment Terms : L/C, T/T, Western Union, MoneyGram, Paypal

Supply Ability : 100000 pcs/ Month

Delivery Time : 3-15 working days

Packaging Details : PP bag+ Carton box

Connector Type : LC-LC

Fiber Tpye : SM（G652、G655、G657）；MM（OM1-OM5）

Cable Diameter : 7.0mm

Outer Sheath Material : LSZH

OperatingTemperature : -20℃～+70℃

StorageTemperature : -40℃～+80℃

Insertion loss : ≤0.3dB

Return loss : UPC SM ≥ 50dB 、UPC MM ≥ 35dB

Repeatability : ≤ 0.1

Durability : ≤ 0.2dB

Interchangeability : ≤ 0.2dB

Length : Customized

Contact Now


Description:



    The base station pulls the fiber optic jumper line, uses the GYFJH 7.0mm LSZH black pull the fiber optic cable,

the two ends are in the form of the branch sleeve armor tube, wears the number ring mark and adds the LC
fiber optic connector.





 Applications:


  • FTTA

  • Telecommunication networks

  • Active device termination

  • Local area networks(LANS)

  • Data processing networks

  • Test equipment

  • Wide area networks(WANS)


Features:


  • Low insertion loss and High reflection loss

  • Good exchange ability

  • Good durability

  • High temperature stability

  • Standard:Telcordia GR-326-CORE


LC-LC GYFJH 2Core 7.0mm LSZH black Outdoor Protected Branch Cable with Interchangeability ≤ 0.2dB and Durability ≤ 0.2dB

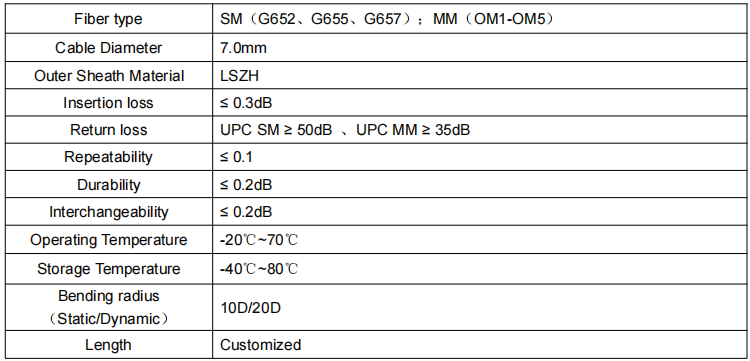

Specifications:



LC-LC GYFJH 2Core 7.0mm LSZH black Outdoor Protected Branch Cable with Interchangeability ≤ 0.2dB and Durability ≤ 0.2dB






How to order Fiber Optic Patchcord



1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirement

8.MPO/MTP connector should let us know which method ( A type / B type /C type ), male or female, fiber count (4/8/12/16/24/32 fiber )
