1*2 Polarization Beam Splitter Low Insertion Loss PM and High Power Components for Coherent Telecommunication Systems

Brand Name : OEM

Model Number : Polarization Beam Splitter

Certification : CE, ISO14001, ISO9001, RoHS

Place of Origin : China，Shenzhen

MOQ : 1

Price : Can be negotiated

Payment Terms : L/C, T/T, Western Union,Paypal

Supply Ability : 3500 pcs/ Month

Delivery Time : 1-3 wks depends on quantity

Packaging Details : sponge+plastic boxes + Export Carton box

Center Wavelength : 1310nm, 1550nm, 1064nm, 980nm

Port number : 1x2

Min. Isolation : 50dB

Min. Return Loss : 50dB

Max. Optical Power(CW) : 300mW

Operating Temperature : -5~+70

Storage Temperature : -40~+85

Contact Now





Features



Low Insertion Loss
High Return Loss
High Extinction Ratio
High Reliability
High Stability





 Applications



Fiber Optical Current Transducer
Fiber Sensor
Optical Fiber Gyro
Coherent Telecommunication Systems

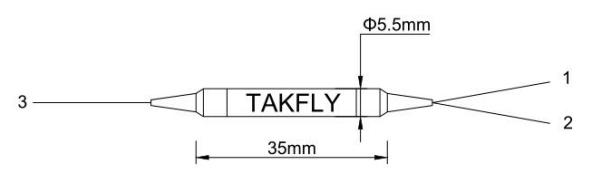

Package Dimensions



1*2 Polarization Beam Splitter Low Insertion Loss PM and High Power Components for Coherent Telecommunication Systems

Routing path is from port 3 to 1,2, Here are three options of polarized state from Port 3 to Port 1 & 2:

Option 1: SM to PM,
               Port 3, Circularly polarized light in,
               Port 1: 50%,Linear polarized light out, through slow axis, Port 2: 50%,Linear polarized light out, through slow axis
Option 2: PM to PM, port 3 is slow axis 0° aligned to port 1
           1.Port 3, Linearly polarized light in, through slow axis,
            Port 1: 100%,Linear polarized light out, through slow axis, Port 2: 0%
           2.Port 3,Linearly polarized light in, through fast axis,
            Port 1: 0%, Port 2: 100%,Linear polarized light out, through slow axis
Option 3: PM to PM,port 3 is slow axis 45° aligned to port 1
           1.Port 3, Linearly polarized light in, through slow axis,
           Port 1: 50%,Linear polarized light out, through slow axis, Port 2: 50%,Linear polarized light out, through slow axis
          2.Port 3, Linearly polarized light in, through fast axis,
          Port 1: 50%,Linear polarized light out, through slow axis, Port 2: 50%,Linear polarized light out, through slow  axis



PM Hybrid Isolator IPBC Specifications

1*2 Polarization Beam Splitter Low Insertion Loss PM and High Power Components for Coherent Telecommunication Systems





Ordering Information



PBS-1111-23-444-555-678-999



2
Fiber Type for Port 3:
001=PM1550, 002=PM1310, 003=PM980, 004=Hi1060, 008=SMF-28E
3
Grade:
P=Perfect grade, A=A grade
444 -Pigtail Type
0=250μm bare fiber, 1=900μm loose tube
555 -Fiber Length 0=0.8m,1=1m
6
Option for Port 3 to 1,2:

1=Option 1, 2=Option 2, 3=Option 3



7


Package Dimension:
0=φ5.5x35mm, 1=φ5.5x50mm, S=Specified



8





Fiber Type for Port 1.2:


001=PM1550, 002=PM1310, 003=PM980, 004=Hi1060, 008=SMF-28E



999


Connector for In&Out:
0=FC/UPC,1=FC/APC,2=SC/UPC,3=SC/APC,4=LC/UPC,5=LC/APC, N=None
