Product Description:

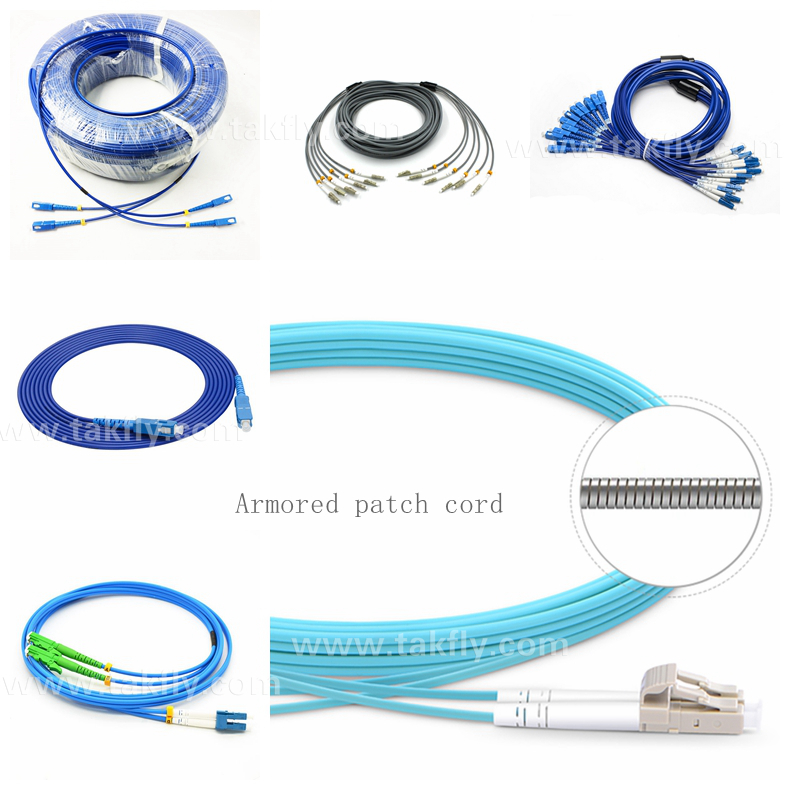

Product Summary: Fiber Optic Patchcord Our fiber optic patchcord, also known as a patch lead, is a high-quality and reliable solution for connecting optical devices in a network. It is available in both Single Mode (SM) and Multi-Mode (MM) variants, making it suitable for a wide range of applications.
The clip style of our patchcord can be either a remove clip or transparent, depending on the customer's preference. The polishing type is available in both UPC and APC, which ensures low insertion loss and high return loss for optimal performance.
The color of the patchcord can be customized to match the customer's branding or network color coding. Additionally, it is available in three fiber diameters, including 9/125um, 50/125um, and 62.5/125um, which make it compatible with various optical devices.
The cable length of the patchcord can be selected from our standard options, which include 1m, 2m, 3m, 5m, and 10m. We can also customize the length as per the customer's requirements.
The patchcord is terminated with SC fiber cable connectors, which are widely used in fiber optic networks. It is easy to install and provides a stable and secure connection between two optical devices.
Applications:
The TK-PATCHCORD is available in both remove clip and transparent clip styles, allowing for versatility in installation and use. It can also be customized with a variety of colors to fit any aesthetic or functional need.
The TK-PATCHCORD is designed with telecom grade materials, ensuring durability and reliability in any application. It is available in both UPC and APC polishing types, allowing for high-quality signal transmission.
The TK-PATCHCORD is ideal for use in a variety of occasions and scenarios. It is compatible with SC fiber cable and can be used in any situation where a duplex patch cord is required.
Some potential applications for the TK-PATCHCORD include:
- Telecommunications networks
- Computer networking systems
- Medical equipment
- Industrial automation systems
- Security and surveillance systems
Overall, the Takfly/OEM Fiber Optic Patchcord, model number TK-PATCHCORD, is a versatile and reliable option for any organization or individual in need of high-quality signal transmission.
Fiber Optic Patchcord Specification:
| End face type | PC,UPC and APC |
| Fiber type | SM(G652,G655,G657)；MM(OM1-OM5) |
| Cable Diameter | 2.0,3.0 or customized(Simplex/duplex) |
| Insertion loss | ≤ 0.3 dB |
| Return loss | UPC SM≥50dB ,APC SM≥ 60 dB, PC MM ≥ 35 dB |
| Repeatability | ≤ 0.1 |
| Durability | ≤ 0.2dB |
| Interchangeability | ≤ 0.2dB |
| Tensile strength | >70N |
Operating
Temperature | -20℃~70℃ |
| Storage Temperature | -40℃~80℃ |
| Outer Sheath Material | PVC,LSZH,TPU |
Bending radius
(Static/Dynamic | 10D/20D |
| Length | Customized |
FAQ:
Q: What is the brand name of this fiber optic patchcord?
A: The brand name of this fiber optic patchcord is Takfly. It can also be customized under OEM.
Q: What is the model number of this fiber optic patchcord?
A: The model number of this fiber optic patchcord is TK-PATCHCORD.
Q: Where is this fiber optic patchcord made?
A: This fiber optic patchcord is made in Shenzhen, China.
Q: What is the minimum order quantity for this fiber optic patchcord?
A: The minimum order quantity for this fiber optic patchcord is negotiable, depending on your specific requirements.
Q: What is the lead time for this fiber optic patchcord?
A: The lead time for this fiber optic patchcord is typically 3-5 business days, depending on the quantity ordered and the availability of stock.
