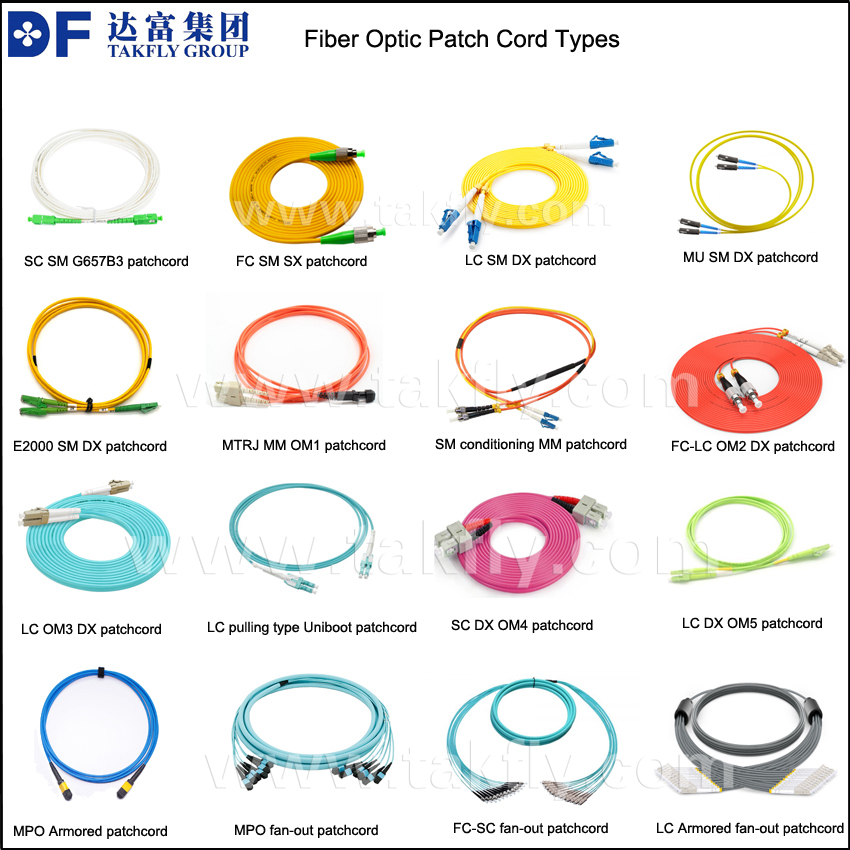

Product Description:
The Fiber Optic Patchcord comes in two different clip styles: remove clip or transparent. The remove clip style allows for easy removal of the patchcord from the device, while the transparent style provides a clear view of the connection. Both styles are designed to provide a secure and stable connection between devices.
The Fiber Optic Patchcord has an insertion loss of less than 0.3dB, ensuring that your network operates at peak performance. This low insertion loss is achieved through the use of high-quality materials and precision engineering.
This patchcord is available in both UPC and APC polishing types. UPC (Ultra Physical Contact) is a polishing method that provides a flat surface for the fiber endface, resulting in low insertion loss and high return loss. APC (Angled Physical Contact) is a polishing method that uses an angled endface to improve the return loss of the connection. Both polishing types are suitable for a range of applications.
The Fiber Optic Patchcord is designed for use with multimode fiber. Multimode fiber is a type of optical fiber that allows multiple modes of light to propagate through the fiber. This makes it suitable for short-distance applications, such as within a building or on a campus.
Overall, the Fiber Optic Patchcord is a high-quality, reliable product that is essential for any optical network. It is available in both remove clip and transparent clip styles, with a diameter of 3.0mm and insertion loss of less than 0.3dB. The patchcord is compatible with LC fiber cables and is designed for use with multimode fiber. Whether you are setting up a new network or upgrading an existing one, the Fiber Optic Patchcord is a must-have component.
Applications:
The TK-PATCHCORD fiber optic cable is designed to deliver low insertion loss of <0.3dB, ensuring high-quality transmission of data signals over long distances. The connectors come in different colors such as blue, beige, aqua, and magenta, which makes it easy to identify and manage multiple connections within a network.
This telecom-grade LC fiber cable is widely used in various application scenarios. Here are some of the ways the TK-PATCHCORD fiber optic cable can be used:
- Telecommunications networks: The TK-PATCHCORD fiber optic cable is an essential component in telecommunications networks, connecting different network devices such as switches, routers, and servers. The low insertion loss and high-quality transmission make it ideal for transmitting large volumes of data over long distances.
- Data centers: In data centers, the TK-PATCHCORD fiber optic cable is used to connect servers, storage devices, and switches. Its high bandwidth and low latency make it ideal for transmitting large volumes of data quickly and efficiently.
- Medical equipment: Medical equipment such as MRI machines and ultrasound devices require high-speed data transmission. The TK-PATCHCORD fiber optic cable is an ideal solution for connecting these devices, ensuring that medical professionals receive accurate and timely information.
- Broadcasting: The broadcasting industry relies on high-quality transmission of audio and video signals. The TK-PATCHCORD fiber optic cable delivers crystal-clear audio and video signals, making it an essential component in broadcasting studios and production facilities.
- Security systems: Security systems such as CCTV cameras require high-speed data transmission to ensure that security personnel can monitor and respond to events in real-time. The TK-PATCHCORD fiber optic cable is an ideal solution for connecting these devices, ensuring that security personnel receive accurate and timely information.
In conclusion, the Takfly/OEM TK-PATCHCORD fiber optic cable is a reliable and high-quality solution for transmitting data signals over long distances. Its low insertion loss, customized colors, and telecom-grade quality make it ideal for various application scenarios such as telecommunications networks, data centers, medical equipment, broadcasting, and security systems.
Fiber Optic Patchcord Specification:
| End face type | PC,UPC and APC |
| Fiber type | SM(G652,G655,G657)；MM(OM1-OM5) |
| Cable Diameter | 2.0,3.0 or customized(Simplex/duplex) |
| Insertion loss | ≤ 0.3 dB |
| Return loss | UPC SM≥50dB ,APC SM≥ 60 dB, PC MM ≥ 35 dB |
| Repeatability | ≤ 0.1 |
| Durability | ≤ 0.2dB |
| Interchangeability | ≤ 0.2dB |
| Tensile strength | >70N |
Operating
Temperature | -20℃~70℃ |
| Storage Temperature | -40℃~80℃ |
| Outer Sheath Material | PVC,LSZH,TPU |
Bending radius
(Static/Dynamic | 10D/20D |
| Length | Customized |
FAQ:
Q: What is the brand name of the Fiber Optic Patchcord?
A: The brand name is Takfly or OEM.
Q: What is the model number of the Fiber Optic Patchcord?
A: The model number is TK-PATCHCORD.
Q: Where is the Fiber Optic Patchcord manufactured?
A: The Fiber Optic Patchcord is manufactured in Shenzhen, China.
Q: What is the maximum length of the Fiber Optic Patchcord?
A: The maximum length of the Fiber Optic Patchcord depends on the type of connector and fiber used. Please contact us for specific length requirements.
Q: What is the lead time for delivery of the Fiber Optic Patchcord?
A: The lead time for delivery of the Fiber Optic Patchcord varies depending on the quantity ordered and shipping destination. Please contact us for an estimated delivery time.
