Fast Connect Fiber Connectors For Drop Cable / Indoor Cable with Lock holds fiber reliability

  • 1
  • 2

Brand Name : TAKFLY

Model Number : TK-FC-SCA-B001

Certification : CE,ROHS,REACH,ISO9001,ISO14001

Place of Origin : Guangdong, SHENZHEN

MOQ : 1 Pices

Price : US$0.01 ~ US$1200/PC

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Delivery Time : 3-7working days

Packaging Details : spone + box + carton

Model No : fiber optic Fast Connector

Atorage Temperatuture : -40°C~85℃

Wiring Devices : ODF

Color : Black

Free Sample : Yes

Connector Outer Diameter : 3.0mm, 2.0mm, 0.9mm

Housing Color : Blue, Green, Beige

Transmission Medium : Single-Mode

Feature : waterproof

Material : Plastic

Interchangeability : ≤0.2dB

Fiber Mode : 62.5/125µm OM1, 50/125µm OM2

Port : Fiber hub Box from NINGBO Port

Model Name : Fiber Optics Connector

Weight : 2kg

Repeatability : ≤0.2dB

Fiber Diameter : 125μm

Assembly Type : Mechanical

Connector Module : 3.0mm

Connector Cable Od : 0.9mm ,2.0mm, 3.0mm

Durability : ≥1000 times

Production Capacity : 700000pieces/Month

Polishing Type : UPC, APC

Filler : Optical Silicone Grease

Endurance : 500 cycles

Operating Temperature : -40°C to +85°C

Connector Return Loss : SMF: UPC≥50, APC≥60 ;MMF: ≥30

Salt Spray : 500h

Installation Time : Within 60s ( No fiber cut )

Contact Now

Product Structure

Measured the Structure

Fast Connect Fiber Connectors For Drop Cable / Indoor Cable with Lock holds fiber reliability


Product length

 50mm ≤L≤60mm(≈55mm)


Optical Characteristics

          Category

Specification

Remarks

Aoolicable for

Drop cable.Indoor cable



Fiber mode

Single mode or Multi mode



Fiber type

G.652D, G.657A1



Fiber cable

3.0*2.0mm rubber-insulated optical cable

∅3.0/∅2.0 /∅0.9 insulated optical cable



Fiber diameter

0.125mm



Force holds 2 x 3mm cable type at the beginning of the fast connector

≥ 40 N, loss ≤ 0.4 dB (sample cable length: 22 - 28 cm, test time: 2 minutes)



Fiber lock

 Lock holds fiber reliability, bears hang force ≥ 3.8 N, attenuation changes ≤ 0.2 dB.



Working wavelength

1310 nm, 1490 nm, 1550 nm



Operation time

S

About 50(no fiber cut)



Insertion Loss

dB

≤0.35



Insertion Loss Typical value

dB

0.3



Return Loss

dB

UPC≥45,APC≥55



Fastening strength of naked fiber

N

≥3



Tensile strength

N

≥40



Reusable

Time

≥10 times



Operating Temperature

℃

-40～+85



On-line tensile strength(20N)

dB

ΔIL≤0.3



Mechanical durability(500 times)

dB

ΔIL≤0.3



Drop-off test(drop-off height4m,once per direction,totally 3 times)

dB

ΔIL≤0.3




Environmental performance requirements



Category

Specification

Condition

IL Variation

RL Variation

Appearance

High TEMP

110℃,200H

≤0.5

≤5

No mechanical damage, like deformation, cracking and untight



Low TEMP

-40℃,200H

≤0.5

≤5

TEMP Cycling

-40～85℃,3.5H/Cle,100C

≤0.5

≤5

HAST

110℃,90%RH,200H

≤0.5

≤5

Immersion

25℃,200H

≤0.5

≤5

Salt Mist

5% Nacl,6.5＜PH＜7.5,35℃,200H

≤0.5

≤5



Mechanical Performance Requirements

Category

Specification

Condition

IL

Variation

RL Variation

Appearance

 Impact

Height: 4m；

1 drop each axis；

 3 cycles

≤0.5

≤5

No mechanical damage, like deformation, cracking and untight



Vibration

Frequency: 10 ～ 50HZ； Sweep: 45 times / min； amplitude: 0.75mm；

Duration:30min each axial

≤0.5

≤5

Torsional

Pull:15N；

The distance between Loading location and fast connector: L = 22-28cm；Rate:10times / min.

Times: 200

≤0.5

≤5

Tensile

Pull:50N；The distance between Loading location and fast connector: L = 22-28cm；

Duration:1min.

≤0.5

≤5

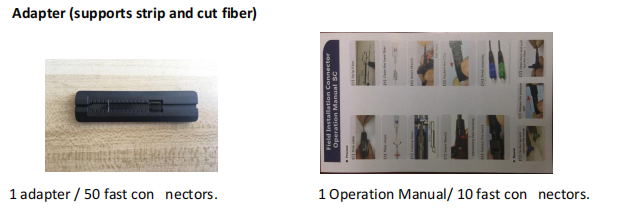

Product Packaging Information

Blister Box Packing

Fast Connect Fiber Connectors For Drop Cable / Indoor Cable with Lock holds fiber reliability

Size(CM)

14.6*7.6*1.6

QTY(PCS/Box)

10

N.W(KG/PCS)

0.0031

N.W(KG/Box)

0.0465

G.W(KG/Box)

0.031


Fast Connect Fiber Connectors For Drop Cable / Indoor Cable with Lock holds fiber reliability

 Cleave fiber

Fast Connect Fiber Connectors For Drop Cable / Indoor Cable with Lock holds fiber reliability

Gift Box Packing(Inner packing)

 Fast Connect Fiber Connectors For Drop Cable / Indoor Cable with Lock holds fiber reliability



Size(CM)



15.8*14.5*9.5

QTY(Blister Box/Girt Box)

10

N.W(KG/Box)

0.55

G.W(KG/Box)

0.52



Outer Packing




Fast Connect Fiber Connectors For Drop Cable / Indoor Cable with Lock holds fiber reliability

Size(CM)

46*46*32.5

QTY(Gift Box/Box)

30

QTY(Pcs/Box)

3000

N.W(KG/Box)

15.5

G.W(KG/Box)

16.5
